Other items in the box
- DAB antenna
- 6-cinch to Scart cable
- 6 cinch + pin8 to scart cable
- Audio Cable
- Coax digital audio cable
- FM/MW Antenna
- 4 channel audio cinch cable
- 3 channel audio cinch cable
- AC Power Cord
- Remote Control
- 2 x Longlife AA

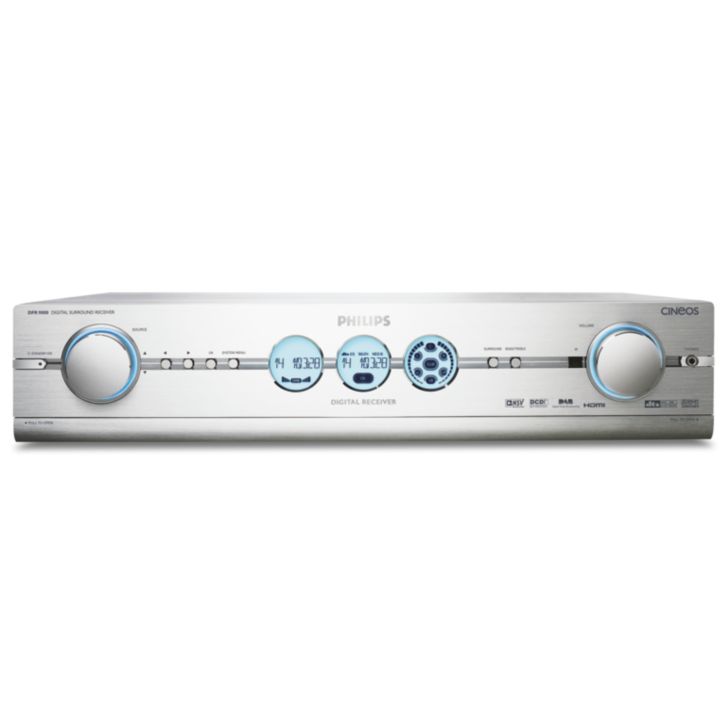

Cineos Digital AV receiver system
DFR9000/01
Turn up your experience with high definition
Experience state-of-the-art audio and video technology with this receiver that promises an intensifying and movie experience.
Unfortunately this product is no longer available
This product qualifies for VAT relief
If you're eligible for VAT relief on medical devices, you can claim it on this product. The VAT amount will be deducted from the price shown above. Look for full details in your shopping basket.
Cineos Digital AV receiver system
Similar products
See all Audio Home Systems

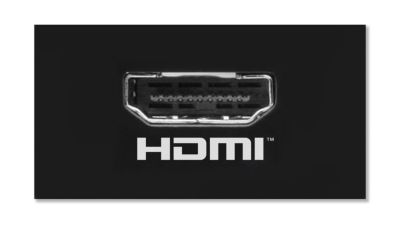

HDMI out for digital high-definition video and digital audio
HDMI is a direct digital connection that can carry digital HD video as well as digital multi-channel audio. By eliminating the conversion to analogue signals it delivers perfect picture and sound quality, completely free from noise. HDMI is fully backwards-compatible with DVI.
Video Upscaling for improved resolution of up to 1080i
With Video Upscaling you can increase the resolution of SD (Standard Definition) video signals that DVD uses to HD (High Definition) so you'll be able to see more details thanks to a sharper, more true-to-life picture.The resulting HD video output signal can be fed to an HD display through HDMI (High-Definition Multimedia Interface).
Noise Shaped Video™ Precision Video - eliminates video noise
NSV™ Precision Video is an embedded noise reduction technology that eliminates existing noise inherent in video signals, thereby providing a more refined picture viewing experience.
Dolby Digital EX & DTS ES for complete 360° surround sound
Dolby Digital EX and DTS ES are 6.1-channel formats, with the rear surround audio channel discretely encoded into the Dolby Digital and DTS bitstream. The formats offer enhanced spatialisation over the surround channels for complete 360-degree sound localisation and surround pans (e.g. movement of sound in the surround channels from one side to another).
DAB for more stations and crystal clear sound
Digital Audio Broadcasting (DAB) is the latest in digital radio technology. It allows you to enjoy your favourite radio stations in crystal clear, near CD-quality sound. What's more, you get an even wider choice of radio stations and radio hiss caused by signal interference due to obstructing mountains, tall buildings and weather become a thing of the past. Since the DAB radio signal is all digital, stations can also transmit text such as programme information, news and sports scores, as well as pictures and even videos direct to your radio set. Radio never sounded so good.
UCD (Universal Class D) Audiophile Digital Amplifier
The UCD Audiophile Digital Amplifier is a full digital Class D amplifier designed to give the lowest output impedance and the best audio measurements. With the performance of a "zero feedback" amplifier, the UCD Audiophile Digital Amplifier allows for audio performance that will satisfy the most demanding audiophile.
Metal chassis & circuitry for best audio performance
The player features reinforced chassis by using extensive bracing and shielding to reduce the negative effects of stray EMI and vibration. Audio circuitry is constructed with audiophile quality parts that are carefully selected based on extensive subjective listening tests and backed by excellent measurements results. The components in the critical audio path are carefully chosen and matched for superior audio performance.
User-friendly and simple AV setup via OSD
The On-screen display provides a simple and user-friendly interface for maximum ease of use and setup of your AV equipment.
Technical Specifications
-
Sound
- Crosstalk (1 kHz)
- 95 dB
- D/A converter
- 24-bit, 192 kHz
- Frequency response
- 20-48,000 Hz
- Output power (RMS)
- 6 x 100 W
- Sound Enhancement
-
- Treble and Bass Control
- Night Mode
- Loudness
-
- Sound System
-
- Dolby Digital
- Dolby Digital EX
- Dolby Prologic II
- Dolby Prologic IIx
- DTS
- dts ES
- DTS Neo:6
- DTS 96/24
-
- Impedance
- 4 Ohms
- Distortion and Noise (1 kHz)
- 90 dB
- Dynamic Range (1 kHz)
- 98 dB
- Signal to noise ratio
- 108 db (A-Weighted)
- Maximum power input
- 2.8 V
- Sensitivity
- 0.88 V +12 dB adjustable
-
Connectivity
- Front/Side connections
-
- Audio L/R in
- CVBS in
- S-video in
-
- Other connections
-
- HDMI in 2x
- HDMI out
- Speakerterminal Left
- Speakerterminal Right
- Speakerterminal Centre
- Speakerterminal Surround Left
- Speakerterminal Surround Right
- Speakerterminal Surround Rear
- Subwoofer out
- 8-channel multichannel in
- Component Video Input 2x
- ComponentVideo out Progressive
- S-Video/CVBS video output
- Composite video (CVBS) out
- Scart Control via 2.5 mm jack
- S-Video/CVBS video input 3x
- Analogue audio Left/Right in 3x
- digital coaxial in 3x
- Digital optical in
- Analogue audio Left/Right out 2 x
- Digital audio coaxial out
- DAB antenna
- FM Antenna
-
- Headphones
- 3.5 mm
-
Tuner/Reception/Transmission
- Auto digital tuning
- Yes
- Tuner Bands
-
- FM
- FM Stereo
- MW
-
- Auto store
- Yes
- Number of Pre-set Channels
- 40
- DAB
-
- Band III
- Band L
- Info display
-
- RDS
-
- Programme Type
- Station Name
-
-
Power
- Power supply
-
- 50/60 Hz
- 220-240 V
-
- Standby power consumption
- < 1 W
-
Accessories
- Included accessories
-
- DAB antenna
- 6-cinch to Scart cable
- 6 cinch + pin8 to scart cable
- Audio Cable
- Coax digital audio cable
- FM/MW Antenna
- 4 channel audio cinch cable
- 3 channel audio cinch cable
- AC Power Cord
- Remote Control
-
- Included batteries
- 2 x Longlife AA
-
Dimensions
- Packaging Depth
- 465 mm mm
- Set Width
- 435 mm mm
- Weight incl. Packaging
- 11.5 kg kg
- Packaging Height
- 219 mm mm
- Set Height
- 89 mm mm
- Packaging Width
- 600 mm mm
- Set Depth
- 400 mm mm
- Set weight
- 9 kg
-
Picture/Display
- A/D converter
- 10-bit, 54 MHz
- D/A converter
- 10-bit, 54 MHz
- Picture enhancement
-
- Black Level Shift
- Digital Noise Reduction
- Motion adaptive de-interlacing
- Progressive scan
- Video upsampling
- Video upscaling
-
-
Supported Display Resolution
- Computer formats
-
- 640 x 480, 60 Hz
- 800 x 600, 60 Hz
- 1024 x 768, 60 Hz
- 1280 x 768, 60 Hz
-
- Video formats
-
- 480i, 60 Hz
- 480p, 60 Hz
- 576i, 50 Hz
- 576p, 50 Hz
- 720p, 60 Hz
- 1080i, 60 Hz
- 1080i, 50 Hz
-
