Other items in the box
- Tabletop stand
- AC Power Cord
- VGA cable
- Remote Control
- Batteries for remote control
- Quick start guide
- HDMI-DVI adapter cable
- User manual on CD-ROM
- Optional accessories: SmartLoader 22AV1135
LCD monitor
BDL4231CS/00

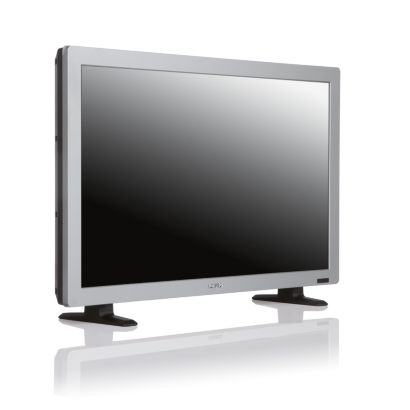

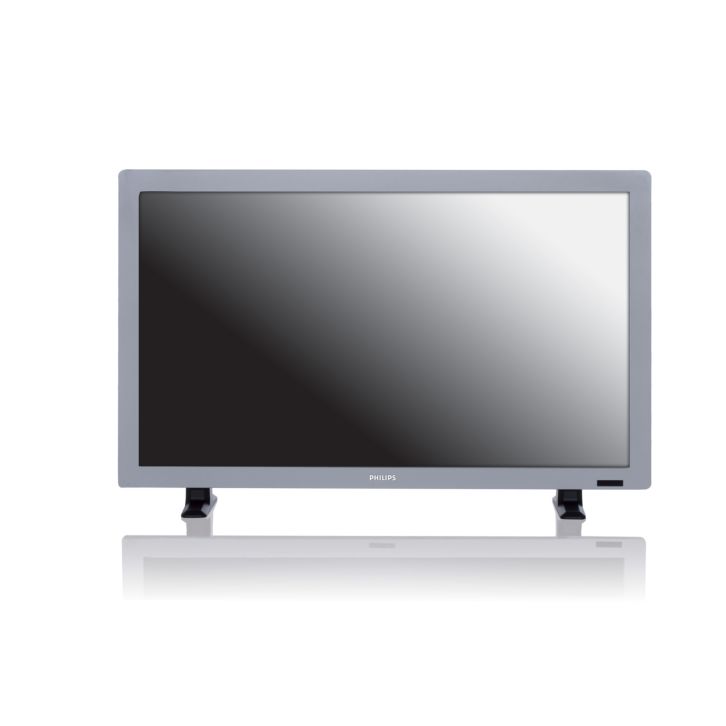

Innovative public display for indoor applications
Control your costs with this network-controllable 107 cm (42") LCD monitor. Whether used in a network or as a single public display, this model offers a variety of features to meet the most demanding public and corporate viewing applications.
See all benefitsUnfortunately this product is no longer available
This product qualifies for VAT relief
If you're eligible for VAT relief on medical devices, you can claim it on this product. The VAT amount will be deducted from the price shown above. Look for full details in your shopping basket.
LCD monitor
Similar products
See all Unmapped
HDMI input for full digital HD connection in one cable
HDMI makes an uncompressed digital RGB connection from the source to the screen. By eliminating conversion to an analogue signal, it delivers an unblemished image. The non-degraded signal reduces flicker and leads to a clearer picture. HDMI intelligently communicates the highest output resolution with the source device. The HDMI input is fully backwards-compatible with DVI sources but includes digital audio. HDMI uses HDCP copy protection.
SmartPower for energy saving
The backlight intensity can be controlled and pre-set by the system to reduce the power consumption by up to 50%, which saves substantially on energy costs.
Wide format WXGA 1366 x 768 resolution for sharper display
The wide format of XGA resolution LCD panel is capable of displaying 1366 x 768 pixels; WXGA allows monitors to be non-interlaced to ensure a better display performance and accurate colour display effect.
Determine different start up settings with Smart Control
In a networked setting you want to able to control the start up conditions of all displays when the mains power is reconnected or resumed after a power interruption. Via RS232 commands Smart Control allows flexibility over four different start up settings: power status, source input, volume level and picture format. For all four settings you can choose the display to remember their last status or to have a fixed setting when power is reconnected.
Hidden and lockable control buttons
The local control buttons of the display are placed in such a way that they are less visible for immediate access. Furthermore, the remote control sensor and the local control buttons can be disabled via RS232 to prevent unauthorised control of the display when placed in a public space.
Integrated SmartCard Xpress Slot for expandability
SmartCard Xpress is an expansion slot that lends additional functionality to the display. Cards developed by Philips and/or third parties are designed to streamline connectivity with the display via the slot, eliminating the need for external devices.
Remote Management and Configuration via RS232
Remote Management allows the user to control and adjust the displays remotely via the RS232 protocol. Using CEC commands, you are able to have full control over all the displays in your signage network at any time.
Wireless SmartLoader for fast cloning
Provides the ability to copy all menu settings from one display into other displays. The feature ensures uniformity between the sets and significantly reduces installation time. Operates fully wireless.
Complies with RoHS standards of care for the environment
Philips designs and produces display products in compliance with strict Restriction of Hazardous Substances (RoHS) standards that restrict lead and other toxic substances that can harm the environment.
Technical Specifications
-
Picture/Display
- Diagonal screen size (metric)
- 107 cm
- Diagonal screen size (inch)
- 42 inch
- Aspect ratio
- 16:9
- LCD panel type
-
- 1366 x 768 pixels
- Anti-glare polariser
-
- Optimum resolution
- 1360 x 768 @ 60 Hz
- Brightness
- 500 cd/m²
- Display colours
- 16.7 million colours
- Dynamic screen contrast
- 3000:1
- Response time (typical)
- 5 ms
- Viewing angle (horizontal)
- 178 degree
- Viewing angle (vertical)
- 178 degree
- Picture enhancement
-
- 3/2 - 2/2 motion pull down
- 3D Combfilter
- 3D MA deinterlacing
- Progressive scan
- Dynamic contrast enhancement
-
- Vertical Scanning Frequency
- 56 - 75 Hz
- Display screen type
- LCD WXGA Active Matrix TFT
-
Connectivity
- PC
-
- 3.5 mm PC audio input x 1
- RS232 D-Sub9
- VGA-in D-Sub 15HD
-
- AV input
-
- HDMI x 2
- Component (YPbPr) 2 x
- Audio (L/R) for YPbPr 2 x
- Composite (CVBS) x 1
- Audio (L/R) x 1
- S-video x 1
-
- Other connections
- S/PDIF out (coaxial)
- Connectivity Enhancements
-
- SmartCard Expansion Slot
- External Loudspeaker connector
-
-
Convenience
- Picture in Picture
- CVBS PIP on VGA main
- Regulatory approvals
-
- CE Mark
- UL/cUL
- CCC
- RoHS
- GOST
- SEMKO
-
- Network controllable
- RS232
- VESA Mount
- 400 x 200 mm
- Screen Format Adjustments
-
- 4:3
- Widescreen
- Subtitle Zoom
- Superwide
- Zoom 14:9
- Zoom 16:9
-
-
Sound
- Built-in speakers
- 2
- Output power (RMS)
- 2 x 10 W
- Sound Enhancement
- Smart Sound
- Sound System
-
- Stereo
- Mono
-
-
Power
- Mains power
- 90-264 VAC, 50/60 Hz
- Consumption (On mode)
- 186 W (Typical)
- Standby power consumption
- <3.5 W
-
Supported Display Resolution
- Computer formats
-
- 640 x 480, 60, 67, 72, 75 Hz
- 800 x 600, 56, 60, 72, 75 Hz
- 1024 x 768, 60, 70, 75 Hz
- 1280 x 720, 60 Hz
- 1280 x 768, 60 Hz
- 1360 x 768, 60 Hz
-
- Video formats
-
- 480i, 60 Hz
- 480p, 60 Hz
- 576p, 50 Hz
- 576i, 50 Hz
- 720p, 50, 60 Hz
- 1080i, 60 Hz
-
-
Dimensions
- Box depth
- 34.1 mm
- Box height
- 74.8 mm
- Box width
- 117 mm
- Set height (with stand)
- 663 mm
- Set height (with stand) (inch)
- 26.1 inch
- Set Width
- 1022 mm
- Product weight
- 21.0 kg
- Set depth (with stand)
- 250 mm
- Set Height
- 615 mm
- Set Depth
- 129 mm
- Set depth (with stand) (inch)
- 9.8 inch
- Set Width (inch)
- 40.2 inch
- Set Height (inch)
- 24.2 inch
- Set Depth (inch)
- 5.1 inch
- Box depth (inch)
- 13.4 inch
- Box height (inch)
- 29.4 inch
- Box width (inch)
- 46.1 inch
- Product weight (lb)
- 46.30 lb
- Weight incl. Packaging
- 21.8 kg
- Weight incl. Packaging (lb)
- 48.06
- MTBF
- 100 k (excl. CCFL 50 k) hrs
-
Technical specifications
- Operating temperature range
- 0 - 40 °C
- Relative humidity range
- 5% - 90%
-
Tuner/Reception/Transmission
- Video Playback
-
- NTSC
- PAL
- SECAM
-
-
Accessories
- Included accessories
-
- Tabletop stand
- AC Power Cord
- VGA cable
- Remote Control
- Batteries for remote control
- Quick start guide
- HDMI-DVI adapter cable
- User manual on CD-ROM
-
- Optional accessories
- SmartLoader 22AV1135
-
Miscellaneous
- Bezel
- silver
- Warranty
- Europe/North America: 3 years, APMEA: 1 year
