Signage Solutions Multi-Touch Display

49BDL4050TT/00

Discover a new level of interaction

Get even closer to your audience than ever before. Fast, precise and extremely durable, its high performance is matched by excellent reliability and functionality.

See all benefits

Unfortunately this product is no longer available

Signage Solutions Multi-Touch Display

Similar products

See all Unmapped

Discover a new level of interaction

using the power of Android

  • 49"
  • Powered by Android
  • 450 cd/m²

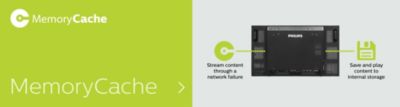

Save and play content with internal memory

Save and play content with internal memory

Save and play content with internal memory. Upload your media into the display and playback content immediately. Working in conjunction with the internal browser, it also serves as a memory cache when streaming online content. If the network ever fails, the internal memory keeps content running by playing a cached version of the content, ensuring that your media stays up even if the network goes down.

Keep your content up and running with FailOver

Keep your content up and running with FailOver

Keeping your content up and running is critical for demanding commercial applications. While it is unlikely you will face a content disaster, FailOver provides content protection with a revolutionary technology that plays back-up content on screen in the event of a media player failure. FailOver automatically kicks in when the primary input fails. Simply select a primary input connection and a FailOver connection and you're ready for instant protection.

CMND: Take control of your displays

CMND: Take control of your displays

A robust display management platform, CMND puts the power back into your hands. Update and manage content with CMND & Create or control your settings with CMND & Control. It's all possible with CMND.

Experience amazing interactivity with true Multi-Touch

Experience amazing interactivity with true Multi-Touch

A brand new level of interactivity is now available thanks to integrated touch technology. More flexibility and optimum simultaneous touch performance coupled with excellent operability opportunities give you the ultimate in user interaction. Multi-Touch displays are equipped with automatic touch recognition. The USB connector is HID-compliant, providing true plug-and-play operation.

Android: Run your own app or choose your favourite app to run

With Android OS integrated into the display, you can work with the most developed OS on the planet and save your own app directly into the display. Or, choose from the large library of Android apps and play content from there. With the built-in scheduler, you can daypart your apps and content based on your customer and time of day and with the auto-orientation feature, showing content in portrait or landscape is as simple as turning the display.

Enhance your connectivity with an integrated mPCIe slot.

With an integrated PCI slot, you can connect a Wi-Fi, Bluetooth or 4G LTE module, allowing for even greater communication with the display. Machine-to-machine communication is also enhanced, with numerous configurations available for customers to use, such as the ability to expand product features or signal-handling capability.

Ensure your content is running with automatic screenshots

Content is king, and with the automatic screenshot feature, you can make sure that your content is up and running at all times. Screenshots are taken throughout the day, which are then stored in the FTP server. From there, the screenshots can be viewed no matter when, or where you are.

True multi-touch with 6 simultaneous touch points

Enjoy a more interactive experience with up to 6 touch points at the same time. Ideal for when you have more than one user interacting with your application simultaneously, the 6 touch points offer an extremely cost-effective solution.

Anti-glare glass with low optical parallax

With this integrated touch display, the anti-glare glass with low optical parallax allows for the most immersive touch experience. With little to no glare and low reflection on the display, images are crystal clear with pure colour and great clarity.

Technical Specifications

  • Connectivity

    Audio output
    • Audio Left/Right (RCA)
    • Ext. speaker cntrl (aud. out)
    Video input
    • DisplayPort (1.2)
    • HDMI (x 2)
    • DVI-D
    • USB
    • VGA (via DVI)
    Audio input
    • 3.5 mm jack
    • Audio Left/Right (RCA)
    Other connections
    • mPCIe
    • micro SD
    • micro USB
    • USB power outlet (5 V. 2 amp)
    Video output
    • DisplayPort
    • DVI-I
    • VGA (via DVI-D)
    External control
    • RJ45
    • RS232C (in/out) 2.5 mm jack
    • IR (in/out) 3.5 mm jack
  • Picture/Display

    Diagonal screen size (metric)
    123.2  cm
    Diagonal screen size (inch)
    48.5  inch
    Aspect ratio
    16:9
    Panel resolution
    1920 x 1080p
    Pixel pitch
    0.55926 x 0.55926 mm
    Optimum resolution
    1920 x 1080 @ 60 Hz
    Brightness
    450  cd/m²
    Display colours
    16.7 million
    Contrast ratio (typical)
    1100:1
    Dynamic contrast ratio
    500,000:1
    Response time (typical)
    12  ms
    Viewing angle (horizontal)
    178  degree
    Viewing angle (vertical)
    178  degree
    Picture enhancement
    • 3/2 - 2/2 motion pull down
    • 3D Combfilter
    • Motion compens. deinterlacing
    • 3D MA deinterlacing
    • Dynamic contrast enhancement
    • Progressive scan
  • Convenience

    Placement
    • Landscape (24/7)
    • Portrait (24/7)
    Tiled Matrix
    Up to 15 x 15
    Screen-saving functions
    Pixel Shift, Low Bright
    Keyboard control
    • Hidden
    • Lockable
    Signal loop through
    • DVI
    • VGA
    • RS232
    • IR Loop through
    • DisplayPort
    Energy-saving functions
    Smart Power
    Network controllable
    • RJ45
    • RS232
    • One Wire (HDMI-CEC)
    • HDMI (One Wire)
  • Sound

    Built-in speakers
    2 x 10 W RMS
  • Power

    Consumption (EPA 6.0)
    55  W
    Mains power
    100 ~ 240 VAC, 50 ~ 60 Hz
    Consumption (Typical)
    67  W
    Standby power consumption
    <0.4 W
  • Supported Display Resolution

    Computer formats
    • 1920 x 1080, 60 Hz
    • 1440 x 900, 60 Hz
    • 1366 x 768, 60 Hz
    • 1360 x 768, 60 Hz
    • 1280 x 800, 60 Hz
    • 1280 x 768, 60 Hz
    • 1024 x 768, 60 Hz
    • 800 x 600, 56, 60, 72, 75 Hz
    • 640 x 480, 60, 67, 72, 75 Hz
    Video formats
    • 1080p, 50, 60 Hz
    • 1080i, 50, 60 Hz
    • 720p, 50, 60 Hz
    • 576i, 50 Hz
    • 576p, 50 Hz
    • 480p, 60 Hz
    • 480i, 60 Hz
  • Dimensions

    Set Width
    1097.28  mm
    Product weight
    14.7  kg
    Set Height
    632.46  mm
    Set Depth
    45.72  mm
    Set Width (inch)
    43.2  inch
    Set Height (inch)
    24.9  inch
    Wall Mount
    400 x 400 mm, M6
    Set Depth (inch)
    1.8  inch
    Bezel width
    9.5 mm (T/L/R), 15.6 mm (B)
    Product weight (lb)
    32.41  lb
  • Operating conditions

    Altitude
    0 ~ 3000 m
    Temperature range (operation)
    0 ~ 40  °C
    MTBF
    50,000  hour(s)
    Relative humidity
    20 ~ 80  %
    Temperature range (storage)
    -20 ~ 60  °C
  • Multimedia Applications

    USB Playback Video
    • M2TS
    • M4V
    • MK3D
    • MKV
    • MP4
    • MPEG
    • MPG
    • MTS
    • TS
    • TTS
    • VOB
    • WMV
    USB Playback Picture
    • BMP
    • GIF
    • JPEG
    • JPG
    • PDF
    USB Playback Audio
    • AAC
    • AIF
    • AIFF
    • M4A
    • MP3
    • WAV
    • WMA
    • ASF
    • LPCM
    • M3U
    • MP4
  • Internal Player

    CPU
    Quad Core Cortex A9 1.8 GHz
    GPU
    ARM Mali400 Quad Core 533 MHz
    Memory
    2 GB DDR3
    Storage
    16 GB EMMC
  • Accessories

    Included accessories
    • Remote Control
    • Batteries for remote control
    • Quick start guide
    • RS232 cable
    • AC Power Cord
    Optional accessories
    ColourCalibrationKit (CCK4602)
    Stand
    BM05922(Optional)
  • Miscellaneous

    On-Screen Display Languages
    • English
    • French
    • German
    • Spanish
    • Polish
    • Turkish
    • Russian
    • Italian
    • Simplified Chinese
    • Traditional Chinese
    • Arabic
    • Japanese
    • Danish
    • Dutch
    • Finnish
    • Norwegian
    • Portuguese
    • Swedish
    Warranty
    3-year warranty
    Regulatory approvals
    • EnergyStar 7.0
    • CE
    • FCC, Class B
    • UL/cUL
    • CCC
    • C-Tick
    • RoHS
    • GOST
    • BSMI
    • CB
    • J-Moss
    • PSE
    • VCCI

What's in the box?

Other items in the box

  • Remote Control
  • Batteries for remote control
  • Quick start guide
  • RS232 cable
  • AC Power Cord
  • Optional accessories: ColourCalibrationKit (CCK4602)
