Digital Terrestrial Recorder
HDT8520/05
- -{discount-value}

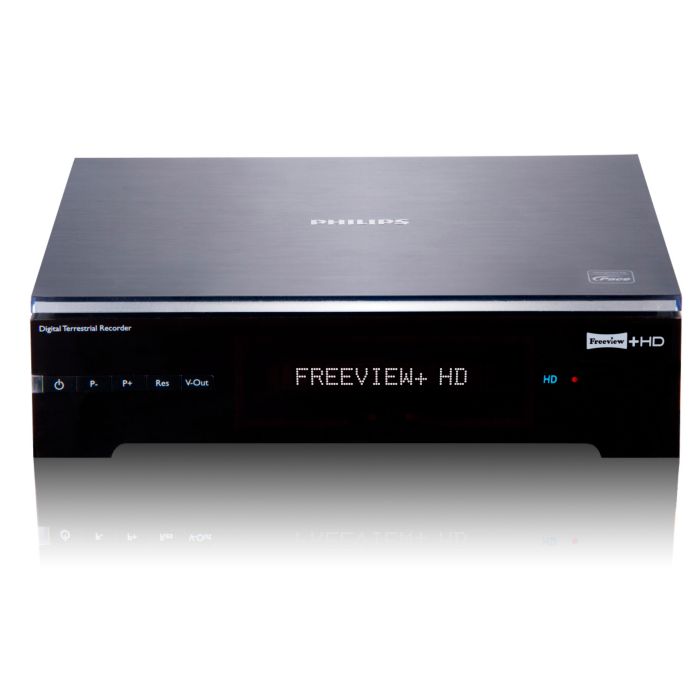

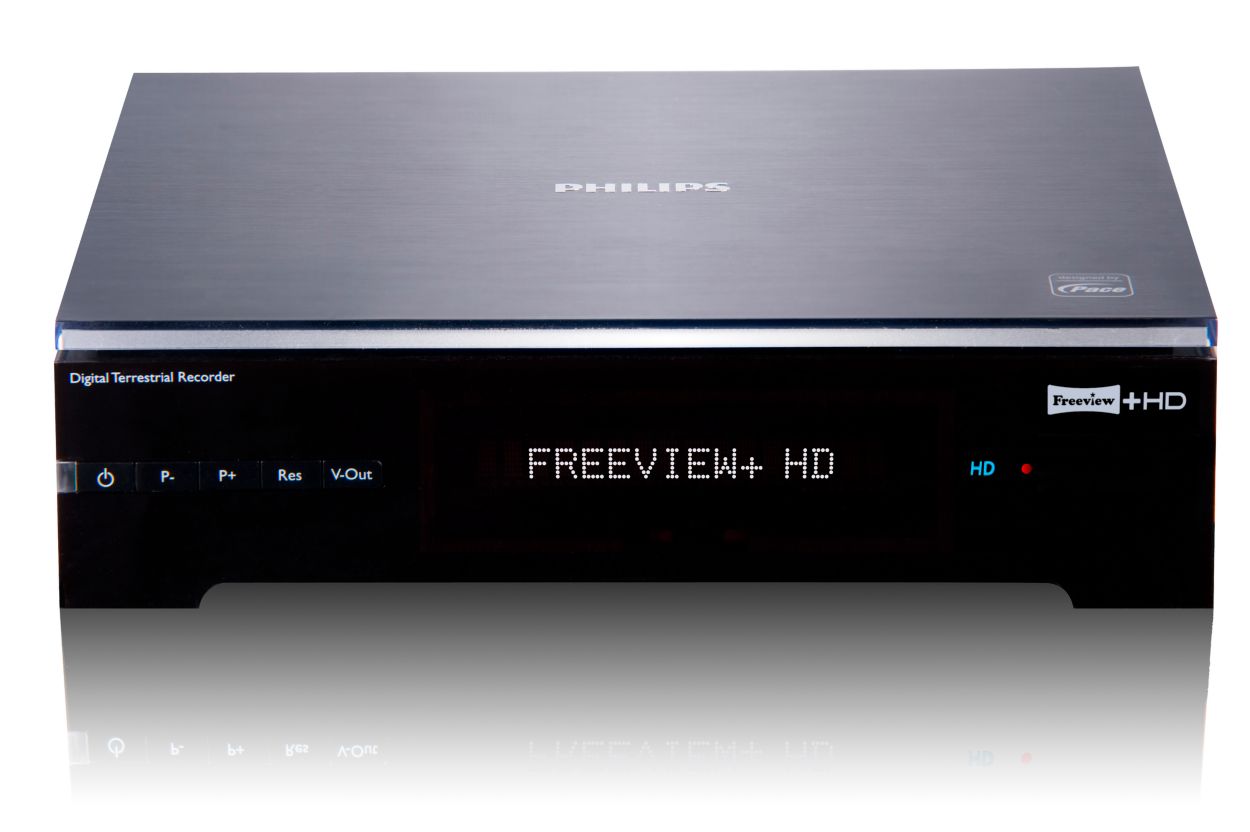

Digital Terrestrial Recorder
HDT8520/05Watch and record your favourite TV shows in HD
Don't miss a thing with the Philips Freeview+ HD PVR! It not only integrates the top audio-visual technology, but also boasts remarkably low power consumption in both active and standby modes and has been designed to function almost silently. See all benefits
Unfortunately this product is no longer available
This product qualifies for VAT relief
If you're eligible for VAT relief on medical devices, you can claim it on this product. The VAT amount will be deducted from the price shown above. Look for full details in your shopping basket.
Digital Terrestrial Recorder
Watch and record your favourite TV shows in HD
Don't miss a thing with the Philips Freeview+ HD PVR! It not only integrates the top audio-visual technology, but also boasts remarkably low power consumption in both active and standby modes and has been designed to function almost silently. See all benefits
Similar products
See all Terrestrial1080p via HDMI for superb HD picture quality
With video upscaling to 1080p you'll be able to see even more detail thanks to a sharper, more true-to-life picture. The resulting HD video output signal can be shown on your HD television through an HDMI (High-Definition Multimedia Interface) connection.
8-day Electronic Programme Guide
You want to know what programmes are available today and for the next 7 days so that you can avoid missing your favourite shows by planning your evenings or making pre-scheduled recordings. The data is broadcast by the programme broadcaster, and when this data is available, the product compiles the information and lists it in the TV Guide. Simply enter the menu or press the GUIDE button on the remote control to access the programme guide. The programme guide will provide programme information listings for today and the next 7 days.
Ability to pause and rewind live TV
A live TV programme is now under your control. You can pause the programme by pressing the PAUSE button and resume playback at the point where it was interrupted by pressing the PLAY button. You can go backwards by pressing the FAST REWIND button and replay scenes you have already watched. If you want to return to the live TV programme, just press the STOP button.
Never miss an episode with Series Recording
Programming recording of a series becomes as simple as recording a single event. By pressing a few buttons you can programme the recording of all the events belonging to one series. Press the GUIDE button to open the Electronic Programme Guide, select the programme you want to record and press the OK button to confirm the programming of the recording. If the selected programme is signalled by the series logo on the Electronic Programme Guide screen, you programme the recording of all the events in the series at once.
One touch recording
Set a recording by pressing just one button on the remote control. Programming no longer required.
Optimal sound quality with Dolby Digital 5.1 output
Because Dolby Digital standards, the world's leading digital multi-channel audio standards, make use of the way the human ear naturally processes sound, you experience superb quality surround sound audio with realistic spatial cues.
Standby consumption < 0.5 W
The smart power management of the receiver leads to power saving in standby mode. The receiver goes to the standby mode that achieves < 0.5 W power consumption automatically, without your intervention.
Technical Specifications
-
Tuner/Reception/Transmission
- Digital TV
-
- Terrestrial
- DVB-T2
- DVB-T
- MHEG with interaction channel
-
- Demodulation type
-
- MPEG-2 DVB compliant
- MPEG-4 DVB compliant
- Network: MFN/SFN
- COFDM 1K/2K/4K/8K/16K/32K
-
- Input frequency range
- 474 to 850 MHz
- Loop through frequency range
- 47-862 MHz
- Number of TV tuners
- 2
-
Video Recording
- Recording enhancements
-
- One Touch Record (OTR)
- Erase
-
-
Storage Media
- HDD recording enhancements
-
- Pause Live TV
- Instant Jump
- Instant Replay
- Time Shift Buffer
- Time Status Bar
- Hard disk space used
-
- Extra hard disk technology
-
- Pause Live TV
- Simultaneous record and playback
- Auto resume
- Trick mode
- Fast Forward-Rewind [x 128]
- Slow motion [x 1/4]
-
- HDD Type
- 3.5" HDD
- Hard Disk Capacity
- 500 GB
- HDD video recording capacity
- In HD up to 125 hr
-
Connectivity
- Terrestrial antenna interface
-
- RF in, IEC 169-2
- 5 V - 50 mA Antenna Powering
- RF out, (bypass) IEC 169-2
-
- Video output — Digital
- HDMI
- AUX scart out
-
- Audio L/R
- CVBS
- PAL
- RGB
-
- Audio Output — Analogue
- Audio L/R (cinch)
- Audio Output - Digital
-
- Coaxial (cinch)
- Optical (TOSLINK)
-
- USB
- USB 2.0 (software update only)
- Network connections
- RJ45
-
Convenience
- User convenience
-
- Electronic programming guide
- Audio Description
- Auto resolution adjustment
- Auto Power off
- Automatic Overheat Warning
-
- Display Type
- 16-digit VFD display
- Ease of Installation
-
- Autoinstall
- Autosearch
- Network installation wizard
-
- Parental control
-
- Child timer
- Lock with PIN code
-
- Signal strength indication
- Yes
- User Interface
-
- Automatic programme list update
- Multiple subtitles supported
- Local software update via USB
- Software upgrade over the air
- TV and Radio mode
- On Screen Display on TV
-
-
Video Decoding
- Compression Format
-
- MPEG-2 MP@ML (std definition)
- MPEG-4 (SD)
- MPEG-4 (HD)
-
- Resolution
- up to 1920 x 1080 progressive
- Aspect Ratio
-
- 16:9
- 4:3 Letterbox
-
- Video bitrate
- Up to 20 Mbit/s
- Copy/content protection
- HDCP on HDMI
-
Audio Decoding
- Compression format
-
- Dolby Digital
- MPEG4 HE-AAC
- Multi-channel down-mixing
- MPEG layer I/II
- Dolby Digital Plus
-
- Sound system
-
- Dolby Digital
- Stereo
- Mono
-
-
Power
- Mains power
- 230 V, 50 Hz
- Power consumption
- < 15 W
- Standby power consumption
- < 0.5 W
-
Dimensions
- Product width
- 235 mm
- Product depth
- 210 mm
- Product height
- 70 mm
- Carton dimensions (WxDxH)
- 360 x 290 x 100
- Weight
- 1.75 kg
- Weight incl. Packaging
- 2.7 kg
-
Accessories
- Included accessories
-
- Remote Control
- 2 x AAA Batteries
- HDMI cable
- RF antenna cable
- Mains cord
- Mains Adapter
- User Manual
- Quick start guide
-
