Other items in the box
- AC Power Cord
- Battery
- Remote Control
- Tabletop stand
- VGA cable
- Optional accessories: Ceiling mount
- Optional accessories: Flexible wall mount
- Optional accessories: Fixed wall mount
plasma monitor
BDS4221/00
- -{discount-value}

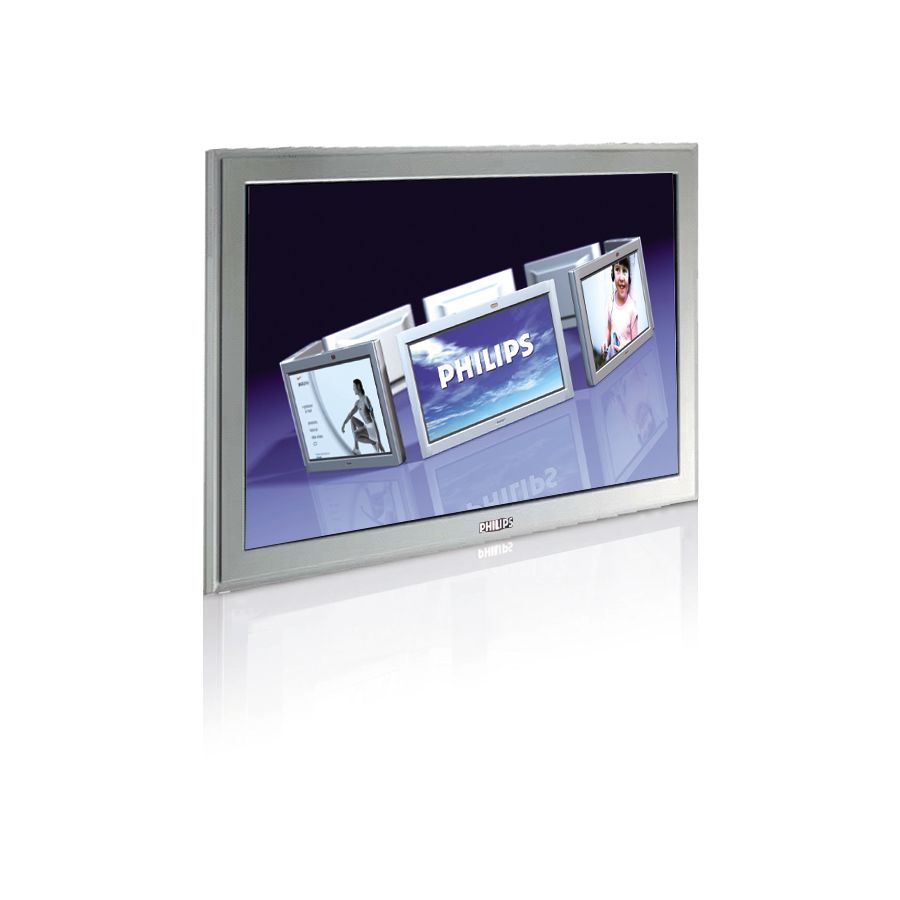

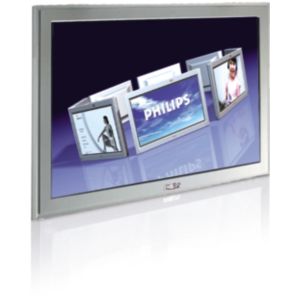

plasma monitor
BDS4221/00Multi-Purpose Public Display Solution
State-of-the-art, cost-effective plasma monitor specially designed for indoor public display applications. The high-class scaler, advanced digital video processing and the latest plasma technology guarantee optimal display of your message. See all benefits
Unfortunately this product is no longer available
This product qualifies for VAT relief
If you're eligible for VAT relief on medical devices, you can claim it on this product. The VAT amount will be deducted from the price shown above. Look for full details in your shopping basket.
plasma monitor
Multi-Purpose Public Display Solution
State-of-the-art, cost-effective plasma monitor specially designed for indoor public display applications. The high-class scaler, advanced digital video processing and the latest plasma technology guarantee optimal display of your message. See all benefits
Multi-Purpose Public Display Solution
State-of-the-art, cost-effective plasma monitor specially designed for indoor public display applications. The high-class scaler, advanced digital video processing and the latest plasma technology guarantee optimal display of your message. See all benefits
Unfortunately this product is no longer available
This product qualifies for VAT relief
If you're eligible for VAT relief on medical devices, you can claim it on this product. The VAT amount will be deducted from the price shown above. Look for full details in your shopping basket.
plasma monitor
Multi-Purpose Public Display Solution
State-of-the-art, cost-effective plasma monitor specially designed for indoor public display applications. The high-class scaler, advanced digital video processing and the latest plasma technology guarantee optimal display of your message. See all benefits
Similar products
See all UnmappedMultiple video input formats up to SXGA and HDTV compatible
In common use video content is often supplied in various formats in different resolutions and aspect ratios. Thus the content needs to be reformatted for optimal display on given screen resolution. A high-class scaler guarantees optimal reformatting of any video format up to SXGA.
VGA Loop through
Connect multiple displays to create a video wall of up to 150 displays via a VGA daisy chain thus enhancing your visual experience. With no additional hardware required, they are as simple to install as they are captivating to your audience.
Wide choice of analogue and digital connectivity
Versatile public display solutions require versatile analogue and digital connectivity.
Built-in audio amplifier with SRS and speakers
If an application requires better sound quality, then this monitor provides SRS surround sound processing, built-in speakers and the ability to connect bigger external speakers
Portrait mode operability
This display can also be safely and reliably mounted in portrait position.
Quiet and reliable fanless operation
Fanless operation is quiet and doesn't collect dust inside the monitor, thus improving product reliability.
Remote Management and Configuration via RS232
Remote Management allows the user to control and adjust the displays remotely via the RS232 protocol. Using CEC commands, you are able to have full control over all the displays in your signage network at any time.
Built-in tuner and extended video connectivity
Some applications need more than PC inputs. The RF tuner for television signal reception and the video connectors, including s-video, scart and component video, offer a wide choice of input possibilities for multiple devices.
High brightness (1000 cd/m2) and 2000:1 contrast ratio
High brightness and contrast values are extremely beneficial in public environments where lighting conditions are variable and often beyond control.
Motion Adaptive De-interlacing for razor sharp images
This smart de-interlacing algorithm is able to detect the type of video source (such as Still Picture, Motion Picture or Film) and automatically optimise the de-interlacing process with Spatial, Temporal or Film mode de-interlacing. The result is that it delivers razor sharp and stable images every time.
3D combfilter separates colours for a razor-sharp image
The 3D combfilter separates brightness and colour signals better in 3D domain to eliminate cross-colour, cross-luminance and dot-crawl distortion - all of which detract from your viewing pleasure. The 3D digital combfilter performs field-by-field comparisons of the television image to accurately separate the colour from the black-and-white information and remove both horizontally and vertically hanging dots, as well as dot crawl. The result is a razor sharp image.
PiP allows watching a second source simultaneously
Provides the ability to watch simultaneously two different sources, either two video sources or a combination with data/graphics
Technical Specifications
-
Picture/Display
- Panel Size
- 42"/106.7 cm
- Aspect ratio
- 16:9
- Panel resolution
- wVGA (854 x 480 pixels)
- Pixel pitch
- 1.08 x 1.08 mm
- Brightness
- 1000 cd/m²
- Display colours
- 16.7 million colours
- Contrast ratio (typical)
- 2000:1
- Viewing angle
- 160º (H)/160º (V)
- Picture enhancement
-
- 3D Combfilter
- Picture in Picture
-
- Horizontal Scanning Frequency
- 15–91 kHz
- Vertical Scanning Frequency
- 50–85 Hz
-
Connectivity
- PC
-
- DVI-D x 1
- RS232 D-Sub9
- VGA-in D-Sub 15HD
- VGA-out D-Sub 15HD
-
- AV input
-
- Component (YPbPr) x 1
- S-video x 1
- SCART x 1
- Audio (L/R) for YPbPr x 1
-
- Other connections
- Antenna
- Audio input for data
- Audio Left/Right (RCA) 2 x
- Audio input for video
- Audio Left/Right (RCA x 2)
- Audio cinch out
- Analogue audio output L/R
-
Convenience
- Built-in Audio
- Built-in amplifier and 5 Watts RMS x 2 stereo speakers
- Picture in Picture
-
- Picture in Picture All Inputs
- Double window
-
- Screen-saving functions
- Full white, pixel shift
- User convenience
- On-screen Display
- Monitor Controls
-
- Power On/Off
- Menu (OK)
- Source Select
- Up/Down
- Left/Right
- Volume control
-
- Regulatory approvals
-
- CE Mark
- FCC-B, UL, CSA
-
- OSD Languages
-
- English
- French
- German
- Italian
- Spanish
-
- Network controllable
- RS232
- DPMS power saving system
- Yes
- SRS sound processing
- Yes
- Teletext
- 10 pages
-
Power
- Power supply
- 100-240 VAC, 50/60 Hz
- Consumption (On mode)
- 380 +/-10% Watts (at 110 Vac/colour bar pattern)
- Sleep Mode
- 5W Max.
-
Supported Display Resolution
- Computer formats
-
- 640 x 480, 60, 72, 75, 85 Hz
- 800 x 600, 56, 60, 72, 75, 85 Hz
- 720 x 400, 70 Hz
- 1024 x 768, 60, 70, 75, 85 Hz
- 1280 x 1024, 60 Hz
-
- Video formats
-
- 480i, 60 Hz
- 480p, 60 Hz
- 576i, 50 Hz
- 576p, 50 Hz
- 720p, 50, 60 Hz
- 1080i, 50, 60 Hz
-
- MAC 640 x 480
- 67 Hz
- MAC 832 x 624
- 75 Hz
- MAC 1152 x 870
- 75 Hz
- VGA 640 x 350
- 70 Hz
- VGA 640 x 400
- 50 Hz
- WVGA 852 x 480
- 60 Hz
-
Dimensions
- Lifetime to 50% brightness
- 25000 hour(s)
- Weight
- 36.5 kg
- Temperature range (operation)
- 0°C to 40°C
- Temperature range (storage)
- -5°C to +50°C
- Relative humidity
- 20% - 80%
- Depth (with base)
- 291 mm
- Height (with base)
- 722 mm
- Width (with base)
- 1081 mm
- Depth (without base)
- 95 mm
- Width (without base)
- 1081 mm
- Height (without base)
- 677 mm
-
Tuner/Reception/Transmission
- TV system
-
- PAL
- SECAM
-
-
Accessories
- Included accessories
-
- AC Power Cord
- Battery
- Remote Control
- Tabletop stand
- VGA cable
-
- User Manual
- Eng,Ger,Dut,Fre,Spa,Ita,Por
- Optional accessories
-
- Ceiling mount
- Flexible wall mount
- Fixed wall mount
-
-
Miscellaneous
- Bezel
- Silver
