USB-docking stand

SB4B1928UB/00

USB-docking stand

SB4B1928UB/00

All-in-one simplicity

This universal notebook docking monitor stand enables easy port replication. Attach the fully-adjustable docking stand to your existing monitor. Expand your viewing workspace and keep peripherals connected, all to this universal dock. See all benefits

Unfortunately this product is no longer available

USB-docking stand

All-in-one simplicity

This universal notebook docking monitor stand enables easy port replication. Attach the fully-adjustable docking stand to your existing monitor. Expand your viewing workspace and keep peripherals connected, all to this universal dock. See all benefits

Similar products

See all Others

All-in-one simplicity

monitor stand and universal dock in one

  • For 19"-28"/48-71 cm monitor
  • Height-adjustable
  • USB connection
Universal USB docking with all notebooks

Universal USB docking with all notebooks

This innovative Philips monitor stand with dock enables easy and universal port replication with any notebook, for a clutter-free workspace. Especially suitable for the latest ultra-thin notebooks with limited connectors, this stand with a built-in USB hub, Ethernet, video outputs, and enables you to transmit video, audio, and connect to the Internet directly with a single cable USB connection. Because USB is a universal connector, you can use this dock with virtually any notebook, no replacing expensive docks when you get a new notebook.

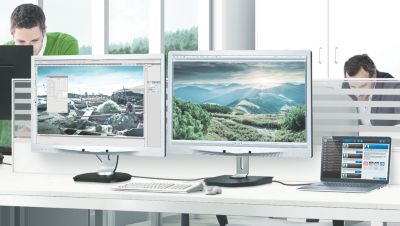

Transmit video and audio from the notebook with a single cable

Transmit video and audio from the notebook with a single cable

Expand your view with a single cable. With a single USB cable from the notebook to the dock, you can attach multiple monitors via HDMI and DisplayPort and display up to 4K UHD (3840 x 2160) resolution to the dock, to create a clutter-free multi-monitor workspace for increased productivity.

SmartErgoBase enables user-friendly ergonomic adjustments

SmartErgoBase enables user-friendly ergonomic adjustments

The SmartErgoBase is a monitor base that delivers ergonomic display comfort and provides cable management. The user-friendly height, swivel, tilt and rotation angle adjustments of the base allow the monitor to be positioned for maximum comfort to help ease the physical strains of a long workday. In addition, cable management reduces cable clutter and keeps the workspace neat and professional.

Low bezel-to-table height for maximum reading comfort

Low bezel-to-table height for maximum reading comfort

Thanks to its advanced SmartErgoBase, the Philips monitor can be lowered down almost to desk level for a comfortable viewing angle. Low bezel-to-table height is the perfect solution if you use bifocals, trifocals or progressive lens glasses for your computing work. Additionally, it allows users of different heights to use the monitor at their preferred angle and height settings, helping them to reduce fatigue and strain.

Stand compatible with VESA monitors for easy set-up

Stand compatible with VESA monitors for easy set-up

Pair the USB-docking stand with a new Philips commercial monitor or upgrade existing monitors. This monitor stand features Philips Quick Release System and is compatible with VESA-compliant (100 x 100 mm hole pattern) monitors up to 28 inches in screen size.

Single USB 3.0 cable docks your notebook to the display

Single USB 3.0 cable docks your notebook to the display

This innovative large Philips display enables easy port replication for any notebook. Particularly suitable for the latest Ultra book type devices with limited connectors, this display with built-in USB 3.0 hub, Ethernet and stereo speakers enables you to transmit video, audio and connect to Internet or intranet directly, using a single cable USB connection. With this advanced USB 3.0 or USB 2.0 plug and play connection, you can now expand your desktop using both your NBPC and Philips display's real-estate without having to worry about cumbersome resolution adjustments or mess around with cables.

Access all peripherals, keyboard and# mouse from the hub

Access all peripherals, keyboard and# mouse from the hub

You now have the option to connect a full sized keyboard and mouse to the Philips display's USB hub to improve your productivity. Simply connect your Notebook to this display with a single USB cable, and you are ready to utilise the additional peripherals such as the external HDD, camera, USB drive along with Full HD video, Audio and Internet functions. Should you prefer, you can of course still utilise your NBPC's keyboard and track pad as usual.

Technical Specifications

  • Connectivity

    Signal Input
    USB 3.0 x 1 (upstream)
    USB
    USB 3.0 x 4 with B.C.1.2
    Earphone jack
    Yes
    Microphone in
    Yes (through USB)
    RJ45
    Yes (through USB)
    SD MMC card slot
    SD card
    Signal Output
    DP x 1, HDMI x 1
  • Ergonomics

    Height adjustment
    120 mm
    Pivot
    90 degree
    Swivel
    -65/65
    Tilt
    -5/20 degree
  • Convenience

    VESA Mount
    100 x 100 mm
    Kensington lock
    Yes
  • Power

    Power supply
    • 100–240 VAC, 50–60 Hz
    • Built-in
    On mode
    3.8 W (typ.), 121 W (max.)
    Standby mode
    < 4 W (typ.)
    Power LED indicator
    On mode - White
  • Dimensions

    Product with stand (mm)
    310 x 463 x 261  mm
    Packaging in mm (W x H x D)
    372 x 543 x 299  mm
  • Weight

    Product with packaging (kg)
    5.2  kg
    Product with stand (kg)
    3.4  kg
  • Operating conditions

    Altitude
    Operation: +12,000 ft (3658 m), Non-operation: +40,000 ft (12,192 m)
    Temperature range (operation)
    0°C to 40°C  °C
    MTBF
    70,000 (excluded backlight)  hour(s)
    Relative humidity
    20%–80%  %
    Temperature range (storage)
    -20°C to 60°C  °C
  • Sustainability

    Environmental and energy
    RoHS
    Recyclable packaging material
    100  %
    Specific Substances
    • PVC/BFR free housing
    • Mercury free
  • Compliance and standards

    Regulatory Approvals
    • CB
    • CE Mark
    • EMF
    • ErP
    • SEMKO
    • C-tick
    • CU-EAC
  • Cabinet

    Finish
    Texture
    Back column
    Black
    Base
    Black
    Front column
    Silver

Suggested products

Recently viewed products

  • Monitor not included
  • Philips docking stand supports charging function for most Asus and Acer notebooks and provides power to most Dell, HP and Lenovo notebooks but without charging.
