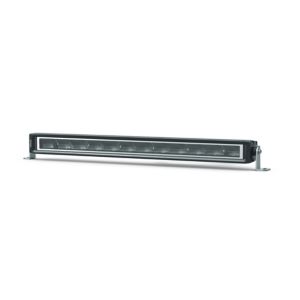

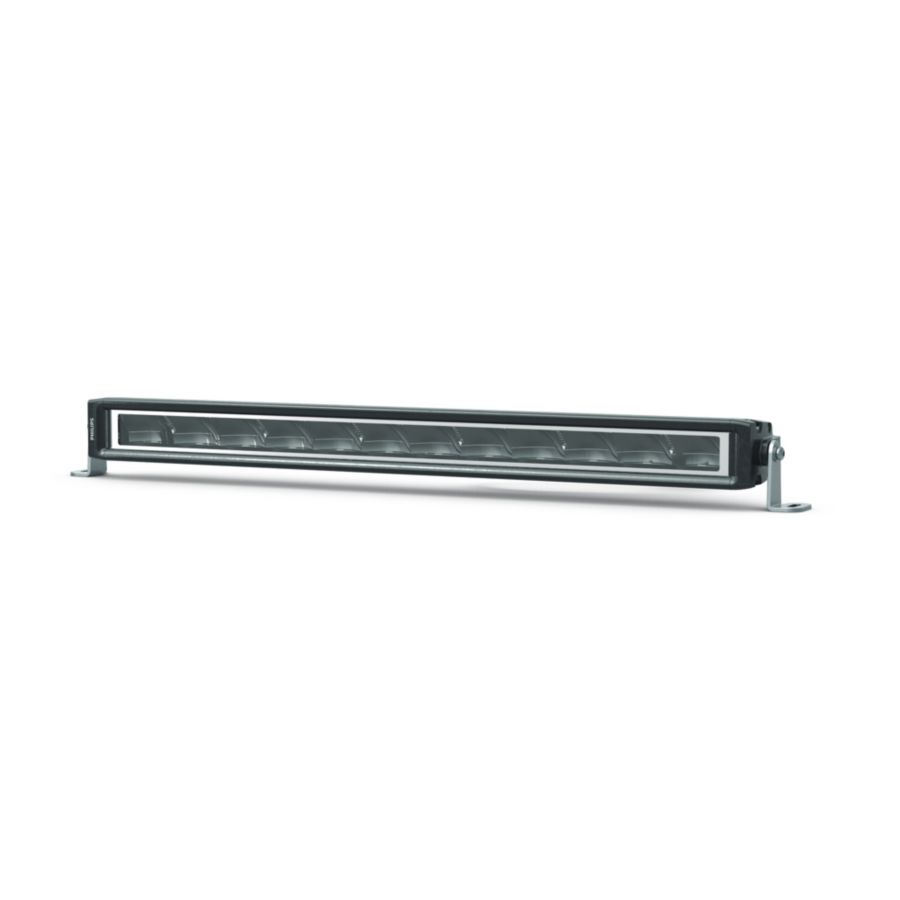

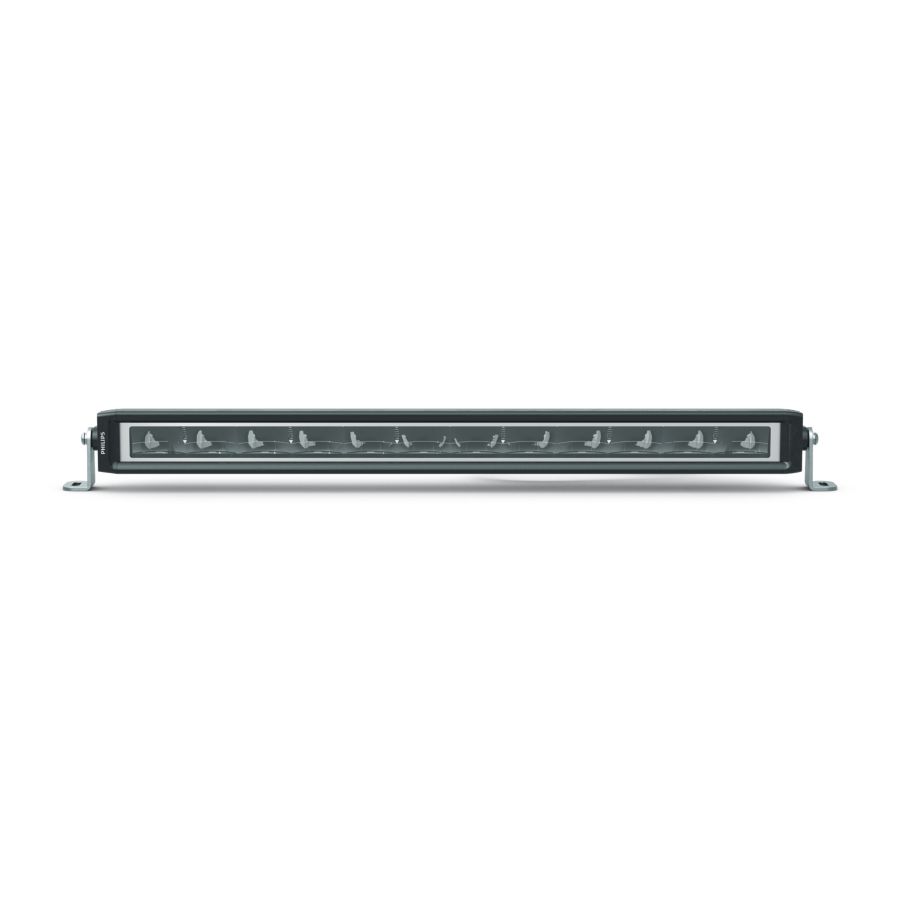

Ultinon Drive 7000

20 inch LED light bar

LUMUD7050LX1

Ultinon Drive 7000 20 inch LED light bar

LUMUD7050LX1

Powerful brightness driving safety at the wheel

The Philips Ultinon Drive 7050L LED light bar has the power to keep you safer, wherever you're headed. Spot hazards up to 520 metres away with lighting that performs in the most hostile environments and gives your vehicle a touch of style. See all benefits

Ultinon Drive 7000 20 inch LED light bar

Powerful brightness driving safety at the wheel

The Philips Ultinon Drive 7050L LED light bar has the power to keep you safer, wherever you're headed. Spot hazards up to 520 metres away with lighting that performs in the most hostile environments and gives your vehicle a touch of style. See all benefits

Powerful brightness driving safety at the wheel

The Philips Ultinon Drive 7050L LED light bar has the power to keep you safer, wherever you're headed. Spot hazards up to 520 metres away with lighting that performs in the most hostile environments and gives your vehicle a touch of style. See all benefits

Ultinon Drive 7000 20 inch LED light bar

Powerful brightness driving safety at the wheel

The Philips Ultinon Drive 7050L LED light bar has the power to keep you safer, wherever you're headed. Spot hazards up to 520 metres away with lighting that performs in the most hostile environments and gives your vehicle a touch of style. See all benefits

Similar products

See all LED lightbars

Powerful brightness driving safety at the wheel

Bright, durable gear for overland journeys

  • Road-legal ECE R149 - 30+30
  • 4000 lm, 480 m beam, 520 m boost
  • Off-road light boost
  • Heated de-icing lens

Intense, far and wide illumination for superior visibility

The Philips Ultinon Drive 7050L LED light bar provides a brilliant light beam that illuminates the road ahead for up to 480 metres*. Its effective 4000 lumens are homogeneously distributed in an optimised indirect beam, generating intense illumination far and wide with reduced glare for everyday use. This enables drivers to react faster on dark, rural and dirt roads. Its 6500-Kelvin cool light colour reproduces daylight conditions, improving contrast and helping drivers stay focused.

Enhanced safety off-road with boost function for more power

The Philips Ultinon Drive 7050L comes with two light functions. For on-road driving, our LED light bar brings you outstanding road-legal brightness and greater safety. Off-road, you can opt for increased intensity of 5300 lumens. Switch on the boost function to unleash full power and increase the beam length up to 520 metres. Greater performance for tougher conditions.

Heated lens to remove snow and ice build-up

Winter can cause snow and ice build-up on your LED light bars, changing the beam pattern and endangering visibility. With the Philips Ultinon Drive UD7050L de-icing function, keep snow and ice off your lens for great lighting performance even in the worst weather conditions.

Powerful road-legal LED lightbars

The Philips Ultinon Drive 7050L LED light bar meets ECE standards and is 100% road-legal for high-beam and position-light functions. It can be installed individually and centrally on vehicles, and still be ECE-compliant on high beam, thanks to its twin light-module design in a single bar.

Low-profile design for simpler fitting

The sleek, low-profile design makes installation easier, and flexible fitting options are possible with side-mounting brackets (included) and back-mounting brackets (UD1001M optional). Supplied with a pre-wired male/female 4-pin superseal DT connector, it is voltage-overload and reverse-polarity protected to make installation secure and easy.

Robust design for tough environments

The Philips Ultinon Drive 7050L LED light bar is built from durable, high-quality materials to withstand the toughest conditions. It is shock-resistant (IK07-rated) to ensure faultless performance on and off the road, with an unbreakable polycarbonate lens. It can handle both immersion in water and the power washer that you use to clean your car afterwards (IP69K-rated). Its anodised, pre-treated and powder coated body offers ultimate corrosion protection, to withstand snow, ice and even salt. Philips Ultinon Drive will ensure durable light on your overland journey, wherever your trail leads.

Technical Specifications

  • Product description

    Boost mode activation
    Yes
    Break resistance
    Yes
    Corrosion-free brackets
    Yes, included
    ECE R10
    Yes
    ECE R149
    Yes
    ECE reference number
    30+30
    Impact protection rating (IK)
    IK07
    Ingress protection rating (IP)
    IP68 and IP69K
    Installation angle
    360°
    Material
    Aluminium extruded
    Off-road boost
    No
    One-piece body design
    Yes
    Operating temperature
    -40° C to 80° C
    Range
    Ultinon Drive 7000
    Scratch-resistant lens
    Yes
    Technology
    LED
    Width
    573 mm/20  inch
    Boost function installation
    Yes
    Accessories (optional)
    LUMUD1001M, LUMUD1003W , LUMUD1004W
    corrosion-free brackets
    Side mounting brackets
    ECE R148
    Yes
    Parking position light
    No
    Plug type
    4-pin DT Connector with 0.5 m cable
  • Light characteristics

    Colour temperature
    6500 K  K
    Beam length 1 lux-m
    480
    Beam length 1 lux (boost)-m
    520
    Effective lumen output
    4000 lumens
    Raw lumen output
    19800 lumens
    Effective lumen output (boost)
    5300 lumens
  • Electrical characteristics

    Voltage
    9-30 Volt DC
  • Ordering information

    Order entry
    UD7050LX1
    GOC
    01848994
  • Packaging Data

    EAN1
    8719018018489
    EAN3
    8719018018496
  • Packed product information

    MOQ (for professionals)
    4
    Box dimensions-L (mm)
    865
    Box dimensions-W (mm)
    90
    Box dimensions-H (mm)
    90
    Number of products in the box
    1 lamp
  • Outer pack information

    Length
    880  cm
    Width
    20  cm
    Height
    20  cm

Suggested products

Recently viewed products

  • Beam length measured on 1 lux.
