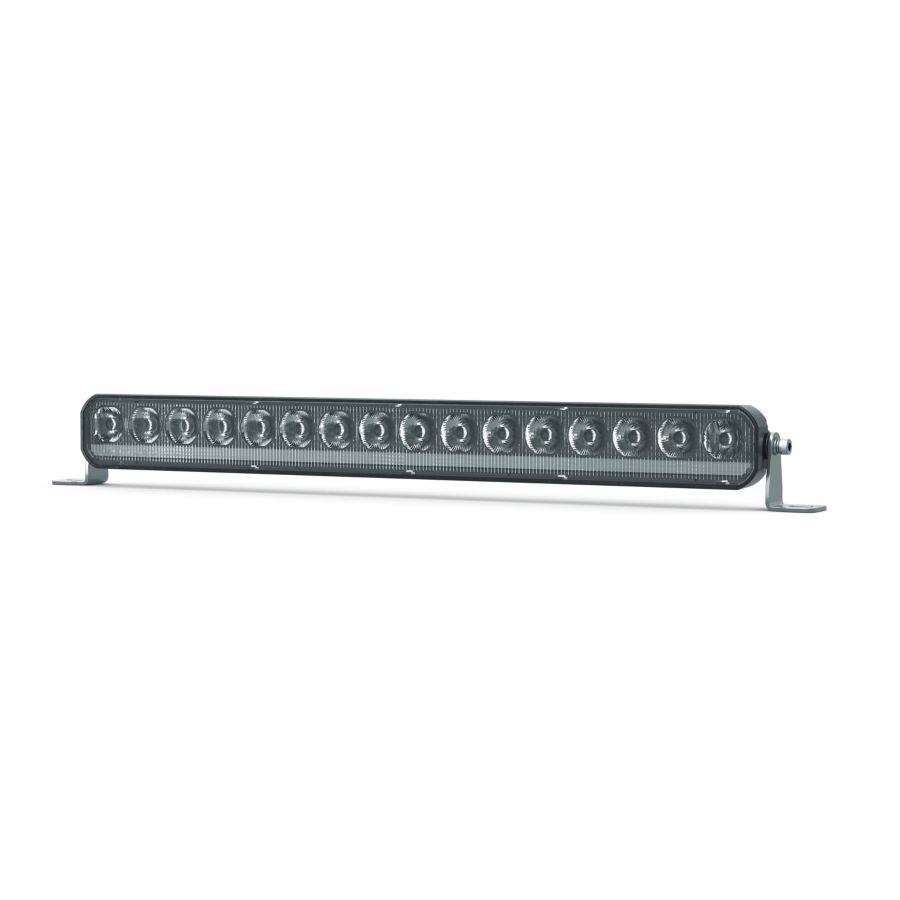

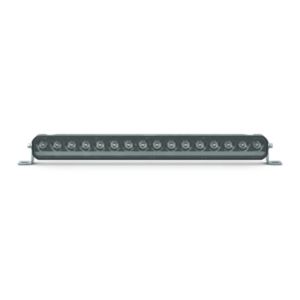

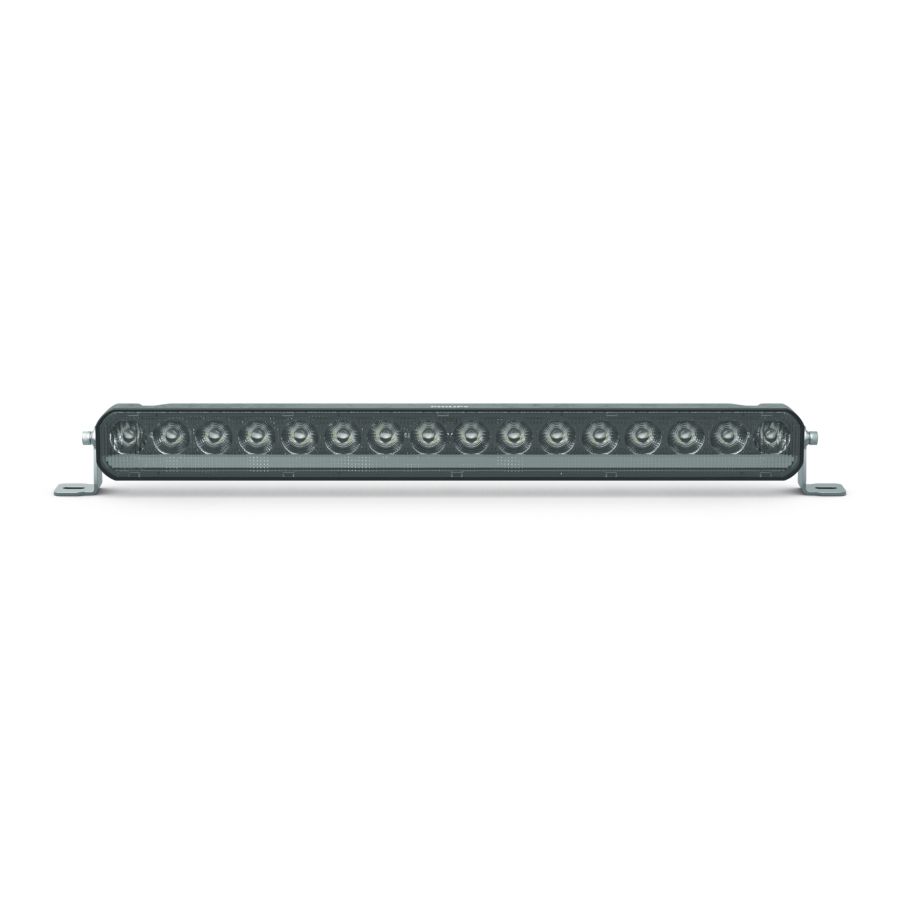

Ultinon Drive 2000 20 inch LED light bar

LUMUD2003LX1

Boosted visibility brings safer driving

See far and wide with crisp, white light projected up to 400 metres. The Ultinon Drive 2003L LED light bar is 100% road-legal with a tough, one-piece design integrating advanced cooling tech. It shrugs off water, dust, rust and other types of physical impact.

See all benefits

Ultinon Drive 2000 20 inch LED light bar

Similar products

See all LED light bars

Boosted visibility brings safer driving

Extra brightness for everyday use

  • Road-legal ECE R149 - 37.5
  • 5300 lm. +400 m beam length
  • LED position-light function
  • All terrain, all weather

Extra brightness for superior visibility

The Philips Ultinon Drive 2003L LED light bar gives you extra high-beam brightness to illuminate the road ahead for up to 400 metres*. Producing 5300 lumens (effective), our LED light bar complies with ECE-R149-27.5 and provides ample visibility ahead and of the edges of the road for faster reaction times. Its cool, 6000 Kelvin light colour creates better contrast and keeps drivers focused.

Extra position lights that get you noticed

Try our Philips Ultinon Drive 2003L LED light bar with position lights, and you'll never go unnoticed on side roads or in parking areas.

Robust design for tough environments

The Philips Ultinon Drive 2003L LED light bar is built to withstand tough conditions throughout your journey. It's shock-resistant (IK07-rated) to ensure faultless performance on and off the road, with an unbreakable polycarbonate lens. It can handle immersion in water (IP67-rated) to provide reliable illumination for your overland adventures, wherever your trail leads.

Powerful road-legal LED light bars

The Philips Ultinon Drive 2003L series meets ECE-R149 standards and is 100% road-legal for high-beam and position-light functions. For added safety, Philips LED light bars are tested to EMC R10 specification to ensure that they will function smoothly with your vehicle's electrical systems.

Corrosion-free, stainless-steel mounting brackets

The mounting brackets for the Philips Ultinon Drive 2003L LED light bar are made of stainless steel, which is corrosion-free. They can withstand snow, ice and even salt. Built from durable, high-quality materials, your Philips auxiliary LED lights will provide years of reliable service.

Technical Specifications

  • Product description

    Boost mode activation
    No
    Break resistance
    Yes
    ECE R10
    Yes
    ECE R149
    Yes
    ECE reference number
    37.5
    Impact protection rating (IK)
    IK07
    Ingress protection rating (IP)
    IP67
    Installation angle
    360°
    Material
    Aluminium die-cast
    Number of LEDs
    16 x 5 W
    Off-road boost
    No
    One-piece body design
    Yes
    Operating temperature
    -40° C to 80°C
    Range
    Ultinon Drive 2000
    Scratch-resistant lens
    Yes
    Technology
    LED
    Width
    508 mm/20  inch
    Boost function installation
    No
    corrosion-free brackets
    Side mounting brackets
    ECE R148
    Yes
    Parking position light
    Yes
    Plug type
    3-pin DT Connector with 0.5 m cable
    Heat sink
    Aluminium powder coated die-cast
    Corrosion protection
    Yes, aluminium powder coated
  • Light characteristics

    Colour temperature
    6000 K  K
    Beam length 3 lux-m
    189
    Beam length 1 lux-m
    400
    Effective lumen output
    5300 lumens
    Raw lumen output
    9920 lumens
    Beam pattern
    Combo beam
  • Electrical characteristics

    Voltage
    9-30 Volt DC
  • Ordering information

    Order entry
    UD2003LX1
    GOC
    01836694
  • Packaging Data

    EAN1
    8719018018366
    EAN3
    8719018018373
  • Packed product information

    MOQ (for professionals)
    4
    Box dimensions-L (mm)
    520
    Box dimensions-W (mm)
    80
    Box dimensions-H (mm)
    80
    Net weight product-g
    1392±55
    Gross weight box-g
    1072±55
    Number of products in the box
    1 lamp

Suggested products

Recently viewed products

  • Beam length measured on 1 lux.
