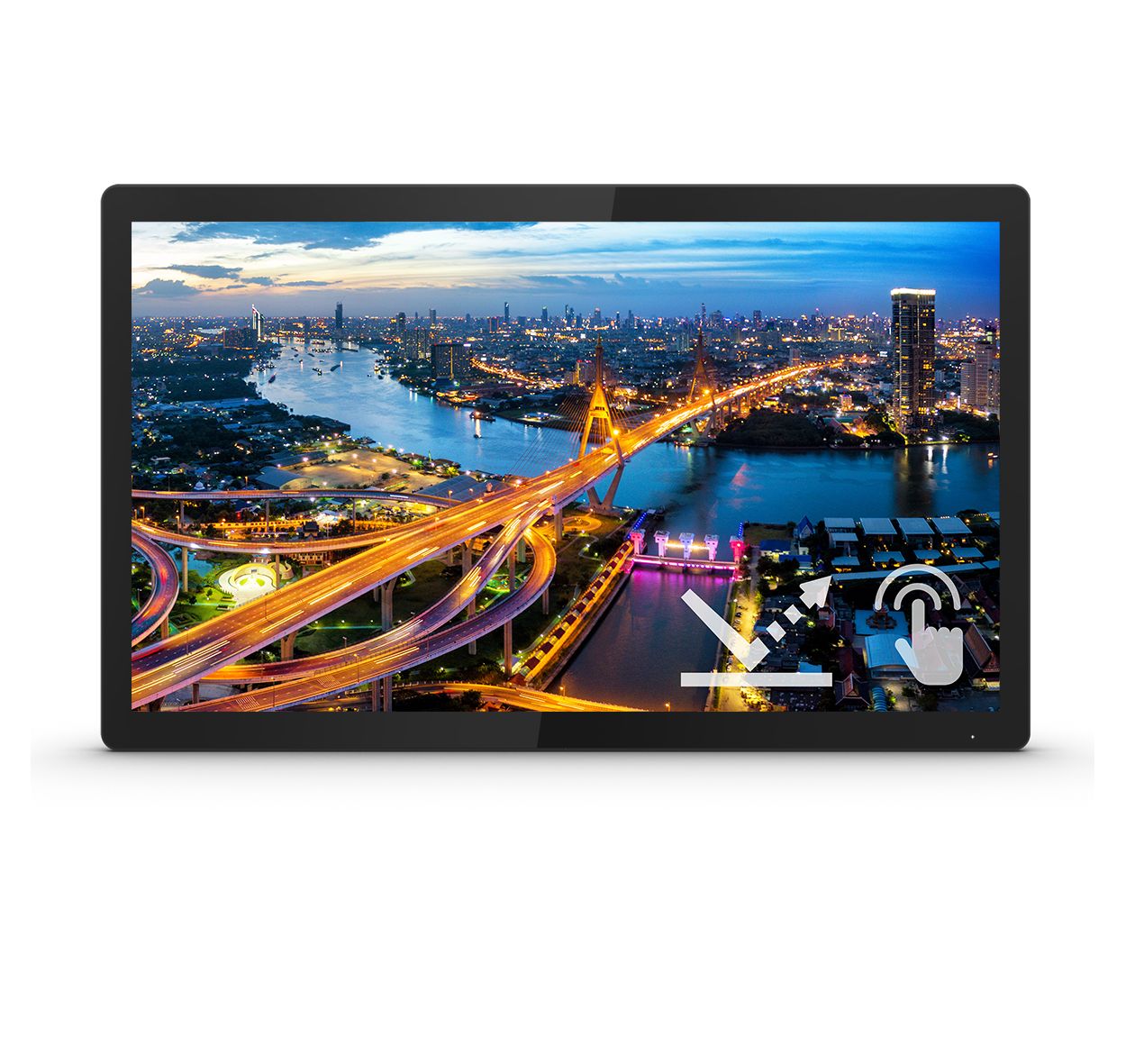

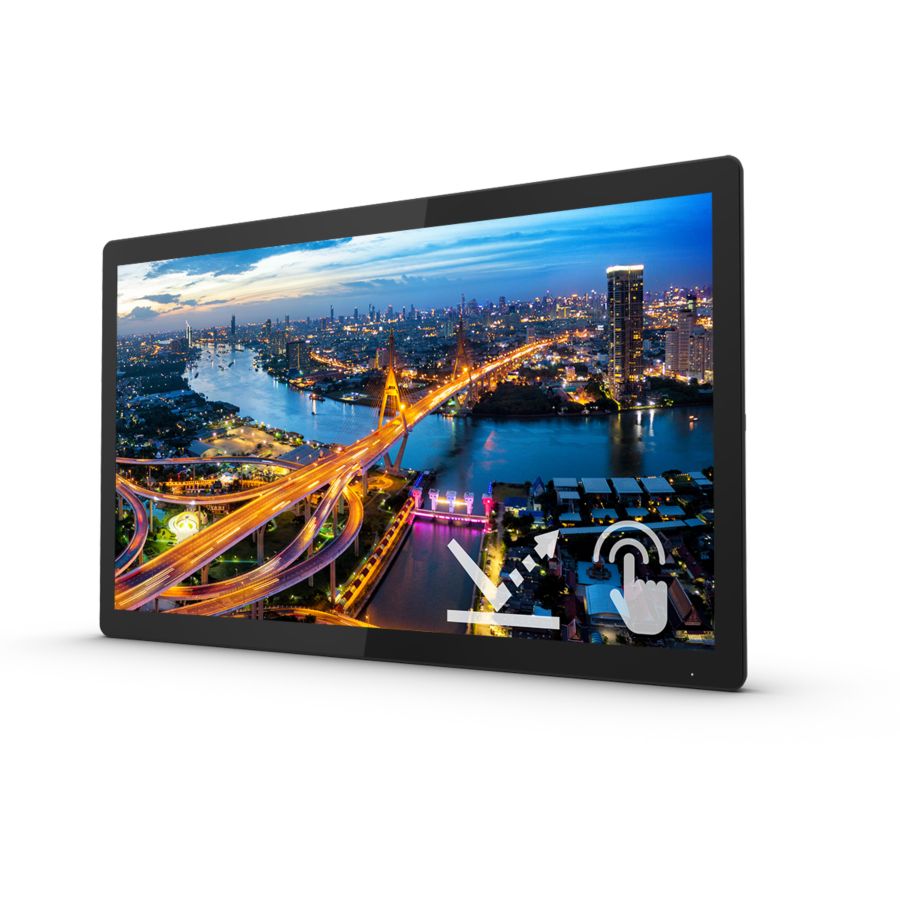

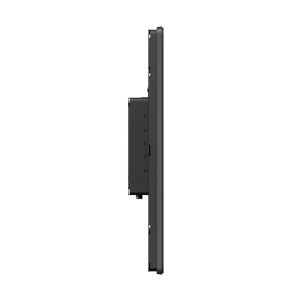

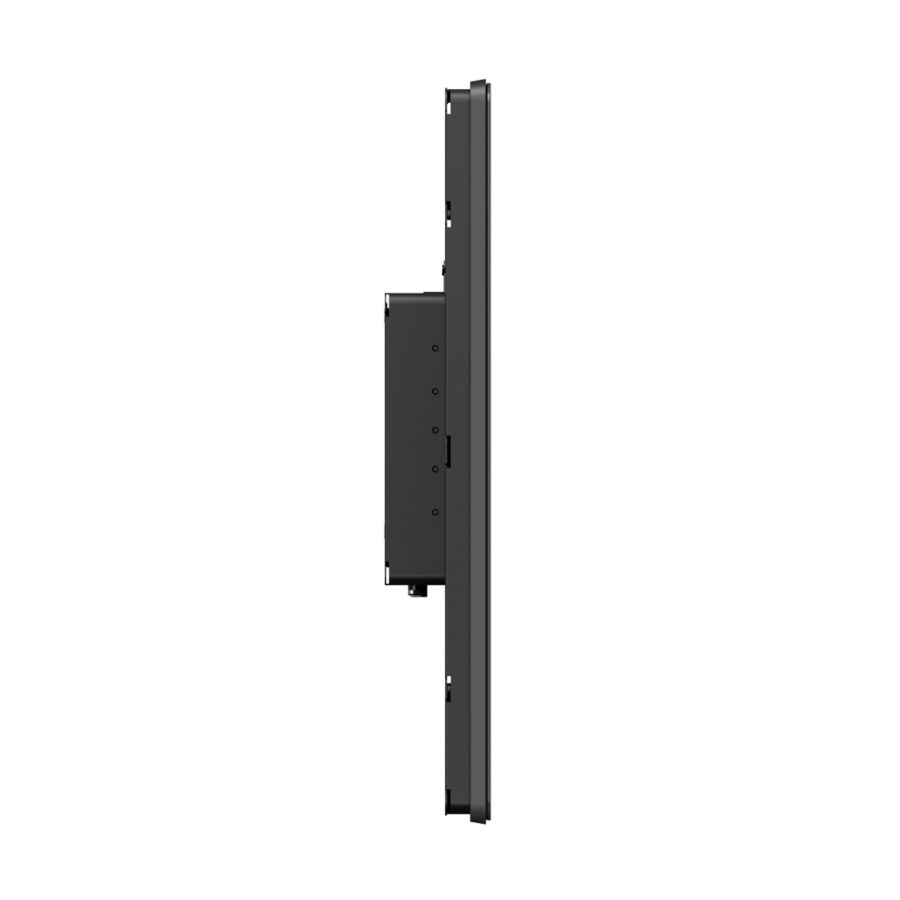

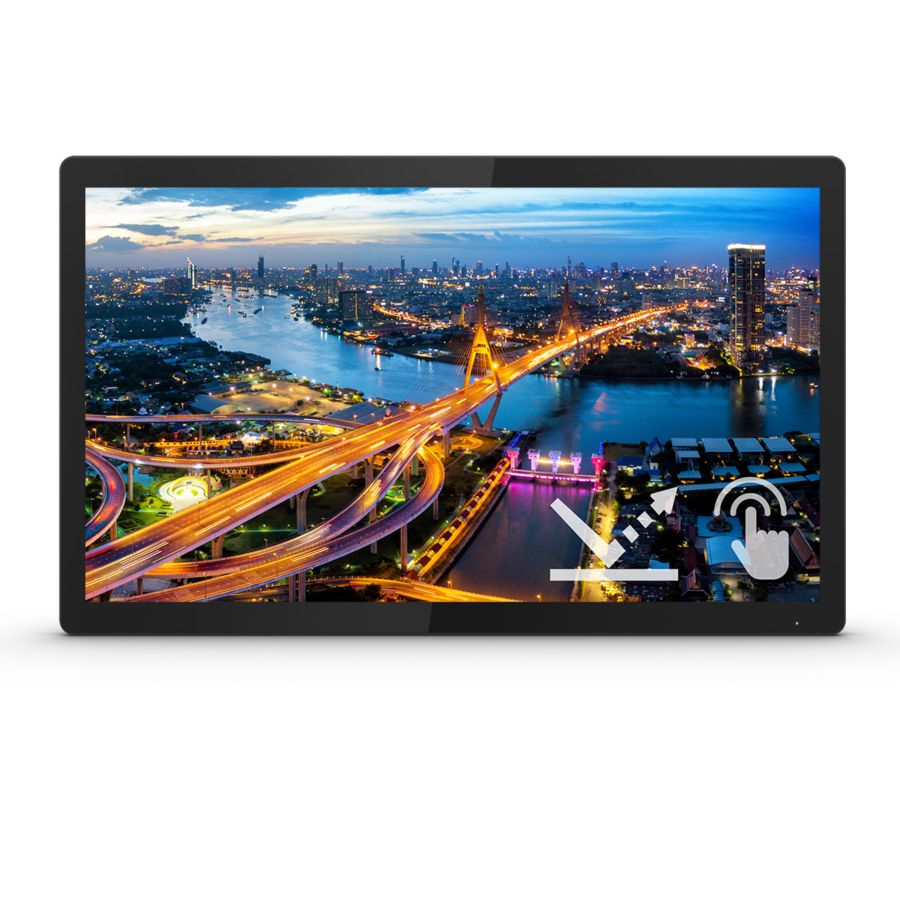

Open-frame touch-screen monitor

222B1TFL/01

Brilliant interactive display with SmoothTouch

Philips open-frame touch monitor provides optimal flexibility for mounting. A sturdy, water and dust resistant, edge-to-edge design to fit your needs. Great brightness performance and anti-glare display creates outstanding picture clarity.

See all benefits

Open-frame touch-screen monitor

Similar products

See all Touch monitors

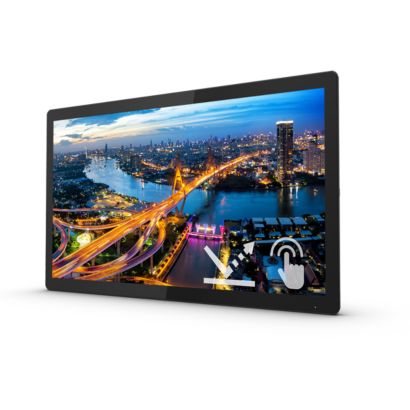

Brilliant interactive display with SmoothTouch

  • B Line
  • 22 (21.5"/54.6 cm diag.)
  • 1920 x 1080 (Full HD)
SmoothTouch display for natural, fluid touch response

SmoothTouch display for natural, fluid touch response

This Philips display uses Projected capacitive 10-point touch technology for fluid response. You can fully utilise the new capabilities of touch-based applications and bring your older applications to life. Touch-type with 10 fingers or play exciting interactive games with your friends. Collaborate with colleagues interactively at work or school environment and increase your productivity and efficiency.

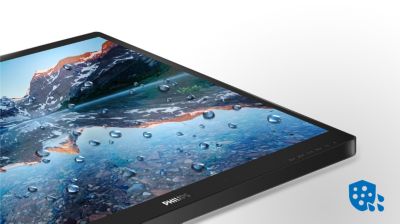

Monitor front surface meets IP65 for water and dust resistance

Monitor front surface meets IP65 for water and dust resistance

For less-than-perfect environments, you need a monitor that's designed to hold up to the splashes of water and dust that happen in the everyday world. Ingress Protection (IP) ratings defined in international standard IEC/EN 60529, are used to define levels of sealing effectiveness of electrical enclosures against intrusion from foreign bodies and moisture. This Philips display meets the international IP rating for water and dust resistance. It will hold up to the water splashes and dust that happen in the everyday world.

Anti-glare coating (AG) for reducing the visual interference

Anti-glare coating (AG) for reducing the visual interference

Anti-Glare Coating, abbreviated AG, can reduce the glare of your touch monitor screen. This chemical process is made in the back of the touch glass and therefore you don't need an additional film to have comfort in your eyes. Images are crystal clear with pure colour and great clarity.

IPS LED wide view technology for image and colour accuracy

IPS LED wide view technology for image and colour accuracy

IPS displays use an advanced technology that gives you extra-wide viewing angles of 178/178 degrees, making it possible to view the display from almost any angle. Unlike standard TN panels, IPS displays give you remarkably crisp images with vivid colours, making them ideal not only for Photos, movies and web browsing, but also for professional applications that demand colour accuracy and consistent brightness at all times.

16:9 Full HD display for crisp, detailed images

16:9 Full HD display for crisp, detailed images

Picture quality matters. Regular displays deliver quality, but you expect more. This display features enhanced Full HD 1920 x 1080 resolution. With Full HD for crisp detail paired with high brightness, incredible contrast and realistic colours, expect a true-to-life picture.

SmartContrast for rich black details

SmartContrast for rich black details

SmartContrast is a Philips technology that analyses the contents you are displaying, automatically adjusting colours and controlling backlight intensity to dynamically enhance contrast for the best digital images and videos or when playing games where dark hues are displayed. When Economy mode is selected, contrast is adjusted and backlighting fine-tuned for just-right display of everyday office applications and lower power consumption.

LowBlue Mode for easy-on-the-eyes productivity

LowBlue Mode for easy-on-the-eyes productivity

Studies have shown that just as ultra-violet rays can cause eye damage, shortwave-length blue light rays from LED displays can cause eye damage and affect vision over time. Developed for wellbeing, the Philips LowBlue Mode setting uses a smart software technology to reduce harmful shortwave blue light.

Less eye fatigue with Flicker-Free technology

Less eye fatigue with Flicker-Free technology

Due to the way brightness is controlled on LED-backlit screens, some users experience flicker on their screen which causes eye fatigue. Philips Flicker-Free technology applies a new solution to regulate brightness and reduce flicker for more comfortable viewing.

HDMI ensures universal digital connectivity

HDMI ensures universal digital connectivity

An HDMI-ready device has all the required hardware to accept High-Definition Multimedia Interface (HDMI) input. An HDMI cable enables high-quality digital video and audio to be transmitted over a single cable from a PC or any number of AV sources (including set-top boxes, DVD players, A/V receivers and video cameras).

DisplayPort connection for maximum visuals

DisplayPort connection for maximum visuals

DisplayPort is a digital link from PC to monitor without any conversion. With higher capabilities than DVI standard, it is fully capable to support up to 15 metre cables and 10.8 Gbps/sec data transfer. With this high performance and zero latency, you get the fastest imaging and refresh rates — making DisplayPort the best choice for not only general office or home use, but also for the more demanding gaming and films, video editing and more. It also keeps interoperability in mind via the use of various adapters.

EasyRead mode for a paper-like reading experience

EasyRead mode for a paper-like reading experience

VESA mount allows for flexibility

VESA mount allows for flexibility

Technical Specifications

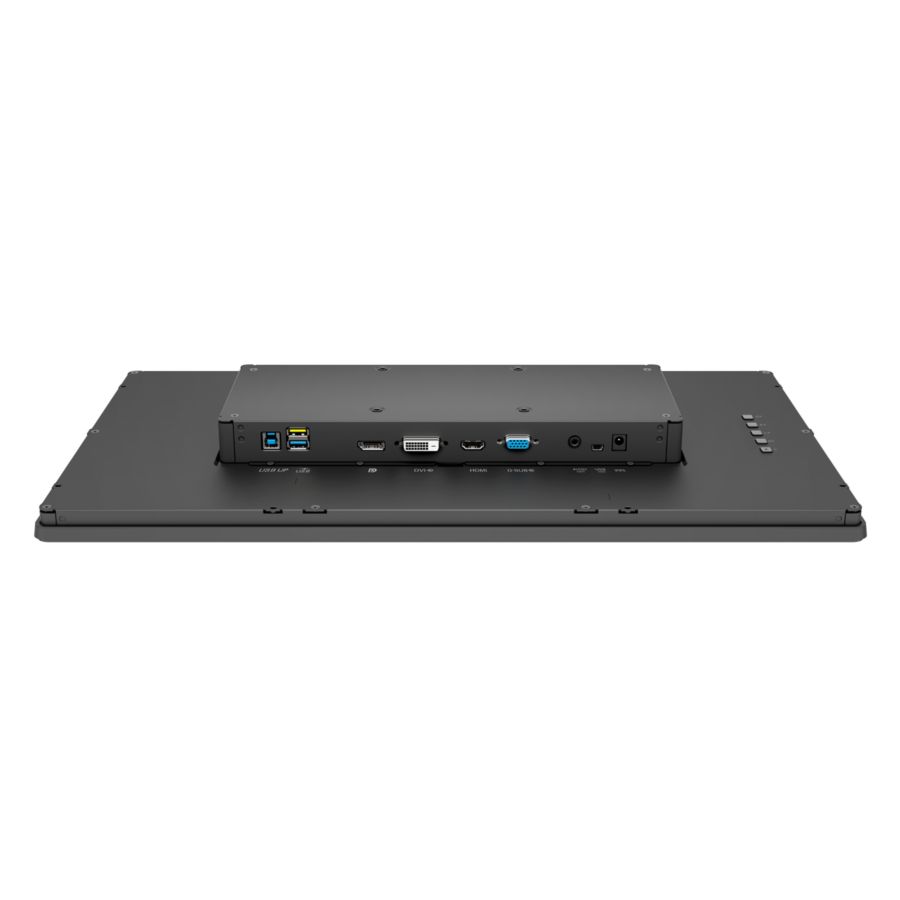

  • Connectivity

    Signal Input
    • VGA (Analogue)
    • DVI-D (digital, HDCP)
    • DisplayPort 1.2
    • HDMI 1.4
    Sync Input
    • Separate Sync
    • Sync on Green
    Audio (In/Out)
    Audio out
    USB:
    USB 3.2 x 1 (Upstream), USB 3.2 x 2 (Downstream with 1 fast charge B.C 1.2), mini USB x 1
  • Picture/Display

    Panel Size
    21.5 inch/54.6 cm
    Aspect ratio
    16:9
    LCD panel type
    IPS technology
    Backlight type
    W-LED system
    Pixel pitch
    0.24795 x 0.24795 mm
    Brightness
    400  cd/m²
    Display colours
    16.7 M
    Colour gamut (typical)
    NTSC 72% (CIE 1931)
    Contrast ratio (typical)
    1000:1
    SmartContrast
    50,000,000:1
    Response time (typical)
    4 ms (Grey to Grey)*
    Viewing angle
    • 178º (H)/178º (V)
    • @ C/R > 10
    Picture enhancement
    SmartImage
    Maximum resolution
    1920 x 1080 @ 75 Hz*
    Effective viewing area
    476.064 (H) x 267.786 (V)
    Scanning Frequency
    30–85 kHz (H) / 48–75 Hz (V)
    sRGB
    Yes
    Flicker-free
    Yes
    Pixel Density
    102 PPI
    LowBlue Mode
    Yes
    EasyRead
    Yes
  • Touch

    Brightness
    340 nits (typ.)
    Ingress protection
    IP65 - front only
    Operating system
    Windows 10 / 8.1 / 8 / 7; Android 11 / 10 / 9 / 8*
    Sealability
    Touchscreen sealed to bezel; Touchscreen sealed to LCD
    Touch active area
    476.064 mm (H) x 267.786 mm (V)
    Touch glass hardness
    7 H
    Touch interface
    USB
    Touch method
    Stylus, Finger, Glove*
    Touchpoints
    10 points
    Touch technology
    Projected capacitive
    Palm rejection area
    >= 30 x 30 mm
    Touch glass coating
    AG coating (Haze: 5% -/+ 3%, Gloss: 80 -/+ 10)
  • Convenience

    Plug and Play Compatibility
    • DDC/CI
    • sRGB
    • Windows 10 / 8.1 / 8 / 7
    User convenience
    • SmartImage
    • Input
    • Brightness
    • Menu
    • Power On/Off
    OSD Languages
    • Brazil Portuguese
    • Czech
    • Dutch
    • English
    • Finnish
    • French
    • German
    • Greek
    • Hungarian
    • Italian
    • Japanese
    • Korean
    • Polish
    • Portuguese
    • Russian
    • Simplified Chinese
    • Spanish
    • Swedish
    • Traditional Chinese
    • Turkish
    • Ukrainian
    Other convenience
    • Kensington lock
    • OSD keypad control

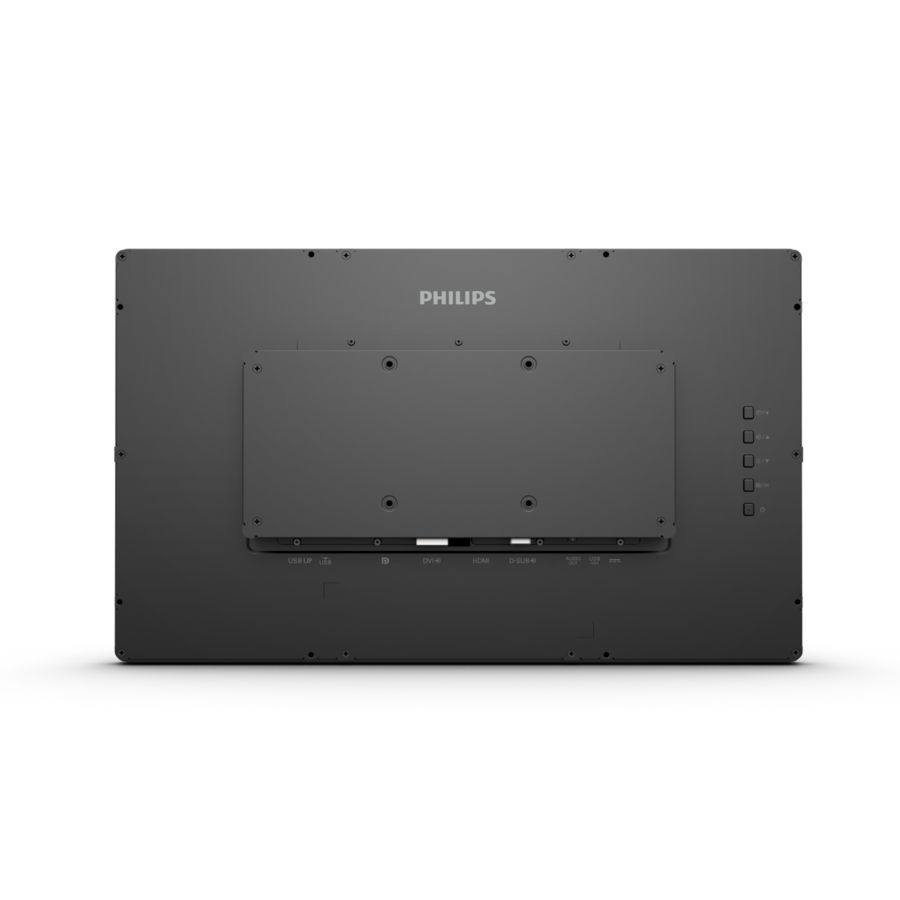

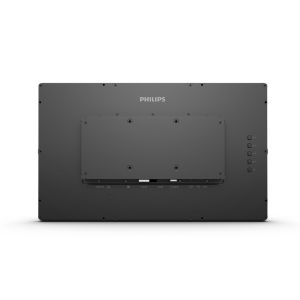

    • VESA mount (100 x 100 mm)
    Control software
    SmartControl
  • Power

    ECO mode
    11.2 W (typ.)
    Power supply
    • External
    • 100–240 VAC, 50–60 Hz
    Off mode
    0.3 W (typ.)
    On mode
    20.1 W (typ.)
    Standby mode
    0.3 W (typ.)
    Power LED indicator
    • Operation - White
    • Standby mode - White (flashing)
    Energy Label Class
    E
  • Dimensions

    Packaging in mm (W x H x D)
    595 x 390 x 121  mm
    Product without stand (mm)
    522 x 315 x 49  mm
  • Weight

    Product with packaging (kg)
    7.54  kg
    Product without stand (kg)
    4.91  kg
  • Operating conditions

    Altitude
    Operation: +12,000 ft (3658 m), Non-operation: +40,000 ft (12,192 m)
    Temperature range (operation)
    0°C to 40  °C
    Relative humidity
    20%-80  %
    Temperature range (storage)
    -20°C to 60  °C
    MTBF (demonstrated)
    70,000 hrs (excluded backlight)
    Installation or placement
    Landscape/Portrait/Face up
    Operational time
    24/7
  • Sustainability

    Environmental and energy
    RoHS
    Recyclable packaging material
    100  %
    Specific Substances
    • PVC/BFR free housing
    • Mercury free
  • Compliance and standards

    Regulatory Approvals
    • CB
    • CE Mark
    • FCC Class B
    • SEMKO
    • UKRAINIAN
    • ICES-003
    • CU-EAC
    • EAEU RoHS
    • TUV Ergo
    • TUV/GS
    • TUV Eye Comfort certified
  • Cabinet

    Finish
    Texture
    Front bezel
    Black
    Rear cover
    Black
  • What's in the box?

    Cables
    HDMI cable, DP cable, USB-A to B cable, Power cable
    Monitor
    Yes
    User Documentation
    Yes
    L-Brackets system
    Yes
    OSD keypad
    Yes

Suggested products

Recently viewed products

Awards

  • "IPS" word mark / trademark and related patents on technologies belong to their respective owners.
  • The maximum resolution works for either HDMI input or DP input.
  • Response time value equal to SmartResponse
  • NTSC Area based on CIE 1976
  • sRGB Area based on CIE1931
  • Glove material and thickness: Nitrile (0.15 mm), Cotton (0.31 mm), CPE (0.03 mm), PVC (0.12 mm)
  • Please refer to "SmoothTouch" in the user manual for more details on operating system support when using the touch function.
  • The monitor may look different from feature images.
