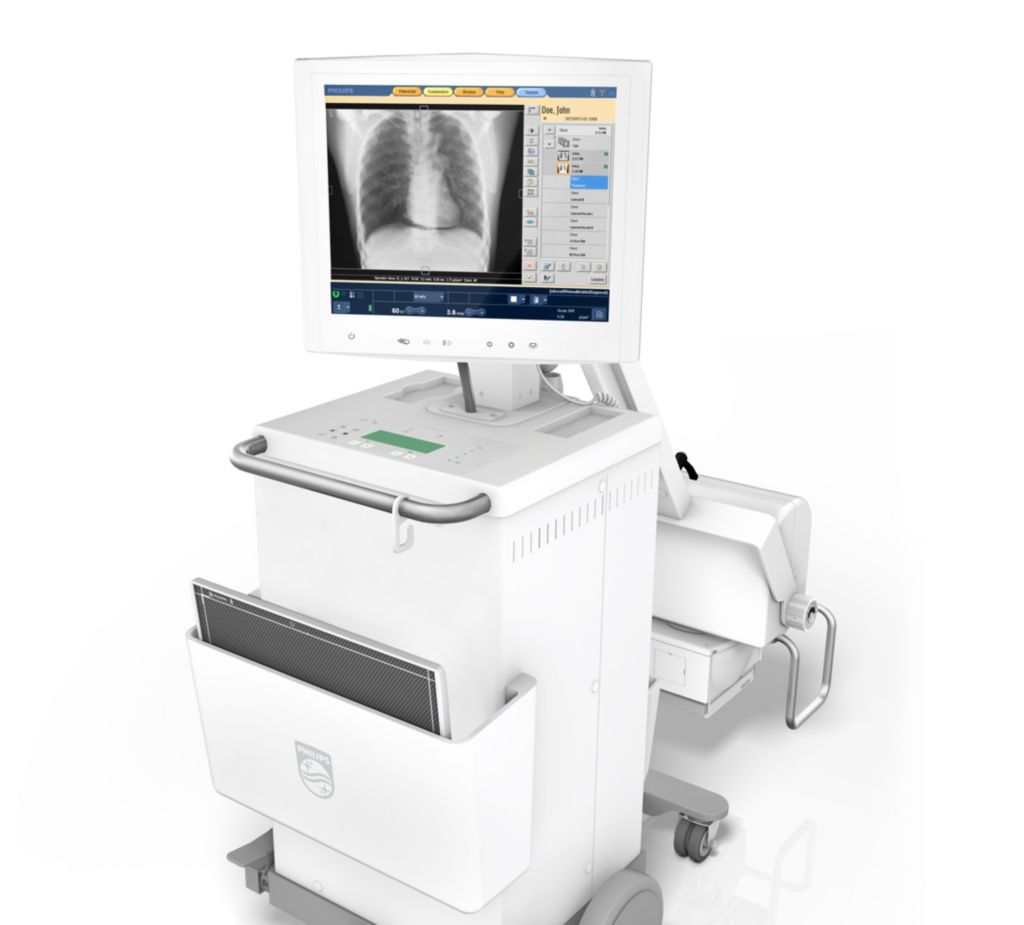

  • Product detail photograph
  • Product detail photograph
  • Product detail photograph
  • Product detail photograph

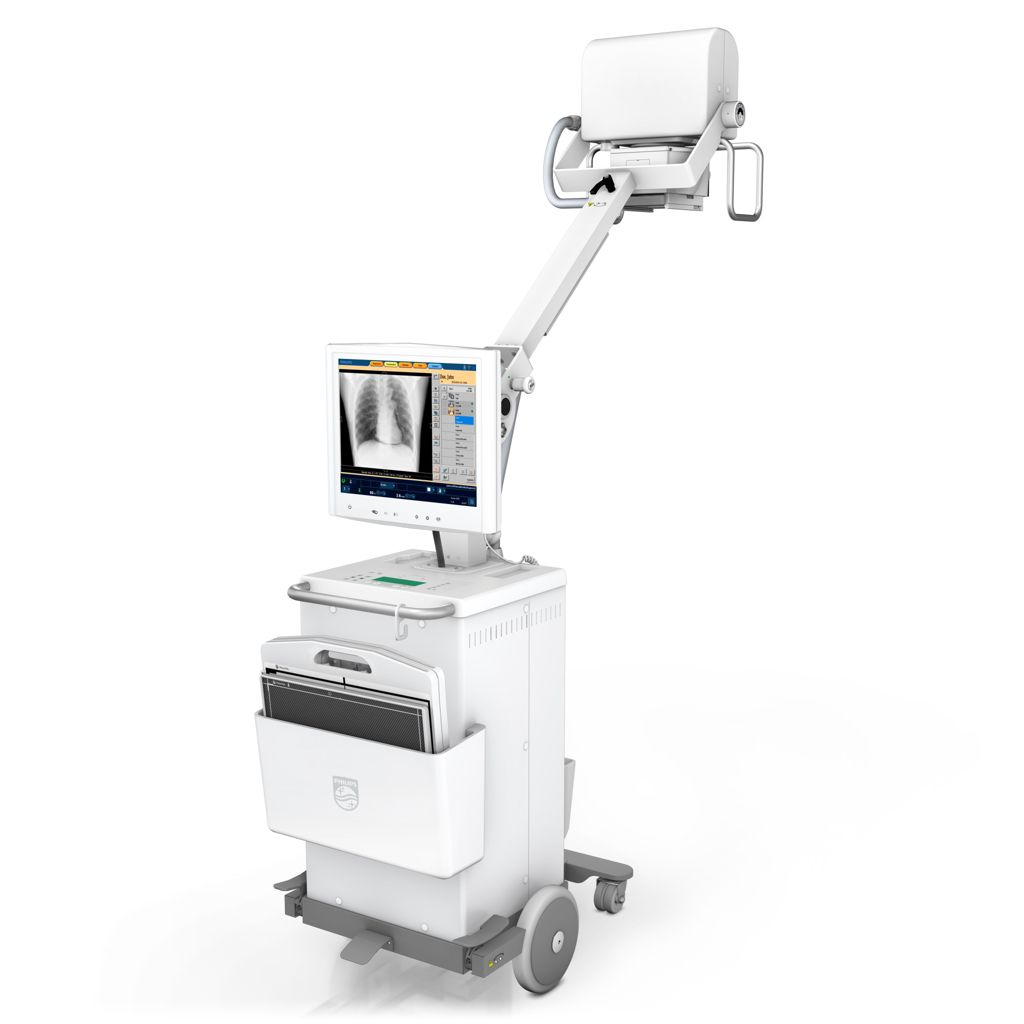

  • Single product shot

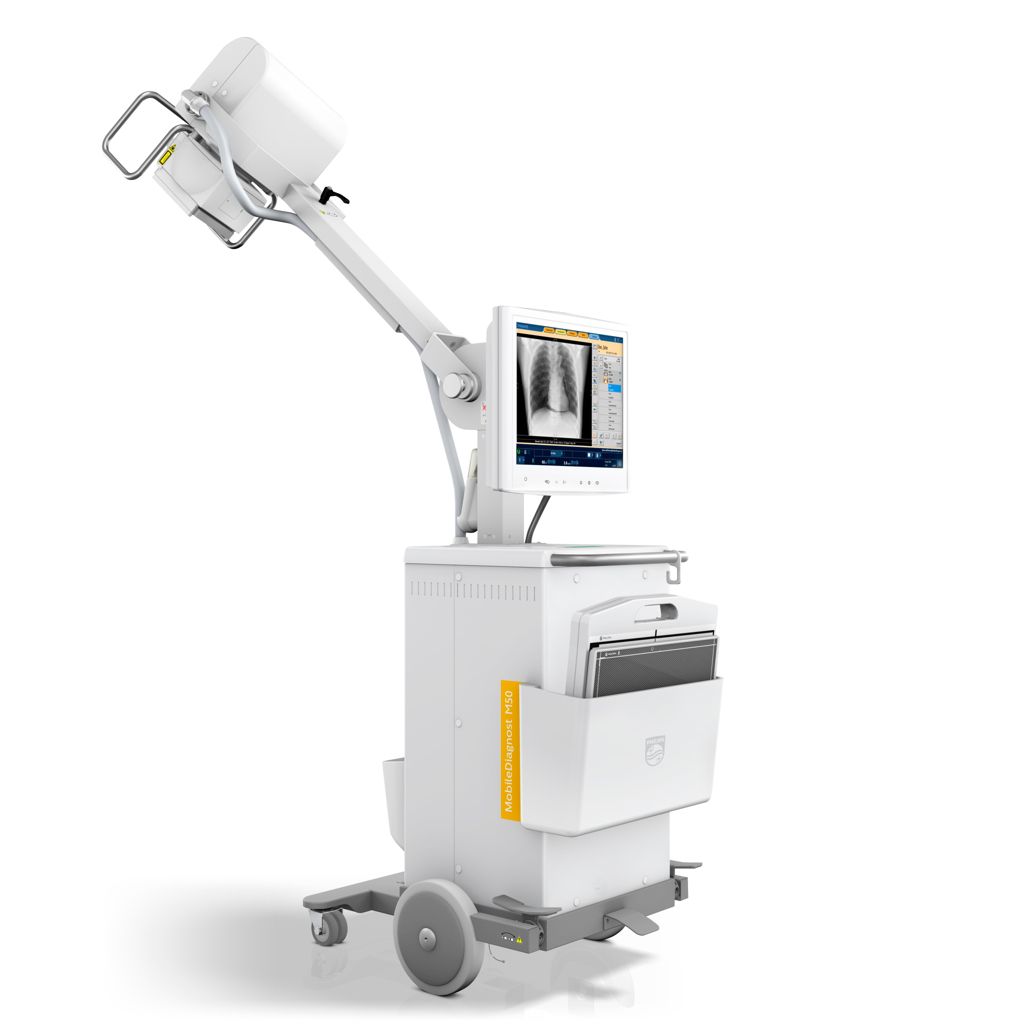

  • Standard product photograph

MobileDiagnost M50

Mobile digital X-ray system
This small, fast and flexible mobile digital X-ray system delivers quality diagnostic images on a managed budget. The superb ease-of-use and wireless workflow offers a wide range of diagnostic capabilities to a busy imaging department.

Features
Easy access to tight spaces
More compact than motorized systems, the small, lightweight form factor of the MobileDiagnost M50 gives you access to virtually every corner of the hospital including challenging spaces in the OR, ER, ICU, and general ward.
Easy access to tight spaces || Easy access to tight spaces
Ease-of-use with wireless workflow
Save valuable time with the wireless digital detector. Perfect for free exams and in the OR table, it can be easily positioned to improve the patient experience. Real-time communication between the detector and the X-ray system is independent of your hospital IT network.
Ease-of-use with wireless workflow || Easy access to tight spaces
Wide range of diagnostic capabilities
An available 32kW generator lets you confidently perform a full range of demanding exams including spine and bariatric cases. Special APR control permits an exposure time of just 1ms, capturing quality images with effective dose management.
Wide range of diagnostic capabilities || Easy access to tight spaces


Specifications

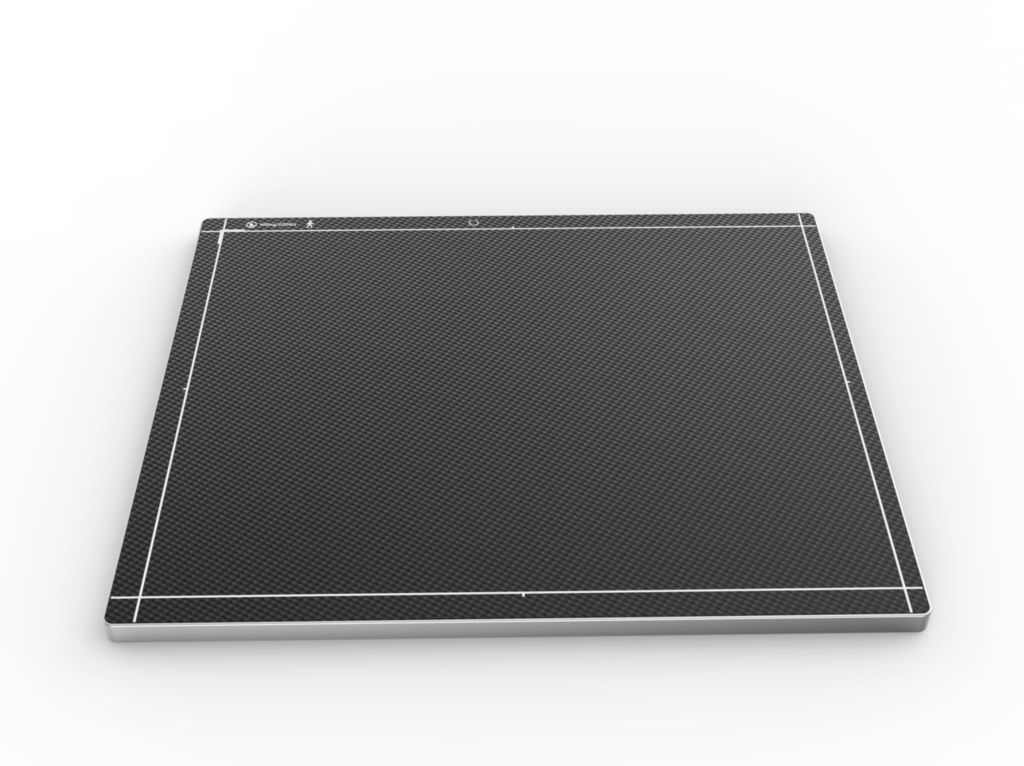

  • Detector
    Type
    Digital Wireless flat detector
    Pixel size
    139 μm
    Scintillator
    Gd2O2S
    Detector size
    35 cm x 43 cm (approx. 14" x 17")
    Image matrix size
    2476 x 3072 pixels
    A/D conversion
    16 bits
    Detector Pixels (MP)
    7.6
    Weight
    3.6 kg approx. (7.93 lbs)
    Autonomy listen mode
    6 hrs
    Autonomy operation mode
    500 acquisitions (image acquisitioncycle less than 20sec)
  • Collimator
    Type
    Manual, with LED light field indicator
    Rotation
    +/- 120°
    Filters
    • 1 mm Al + 0.1 mm Cu
    • 1 mm Al + 0.2 mm Cu
    • 2 mm Al
    • 0 mm Al
    Filter select LED indication
    Yes
  • High level specifications
    Type
    Digital Mobile X-ray unit with wireless detector
    Dimensions - In Operation (l x w x h)
    max. 1836 mm x max. 618 mm x max. 2293 mm (max. 72.3"x max. 24.3"x max. 90.3")
    Dimensions - Transport (l x w x h)
    1371 mm x 618 mm x 1500 mm (54"x24.3"x59")
    Mains supply
    230V/115V, single phase, 50 Hz (60 Hz)
    Mains fuse
    16A
    Detector storage
    One detector
    Weight
    195 kg (430 lbs)appx
    Source to floor distance
    416 mm to 2056 mm (16.4" to 81")
    Handswitch with release button
    Yes
  • Generator
    Power
    • 16kW (16kW)
    • 32kW (32kW)
    Type
    High frequency
    mAs range
    0.1-110 mAs (12.5% steps)
    kV range
    40 - 125 kV (1kV steps)
    mA range
    • 50-200 mA (16kW)
    • 50-320 mA (32kW)
    Exposure times
    0.001-1s
    Small focus / Large focus
    • small focus (0.8) - 16kW
    • small and large focus (0.8 and 1.3) - 32kW

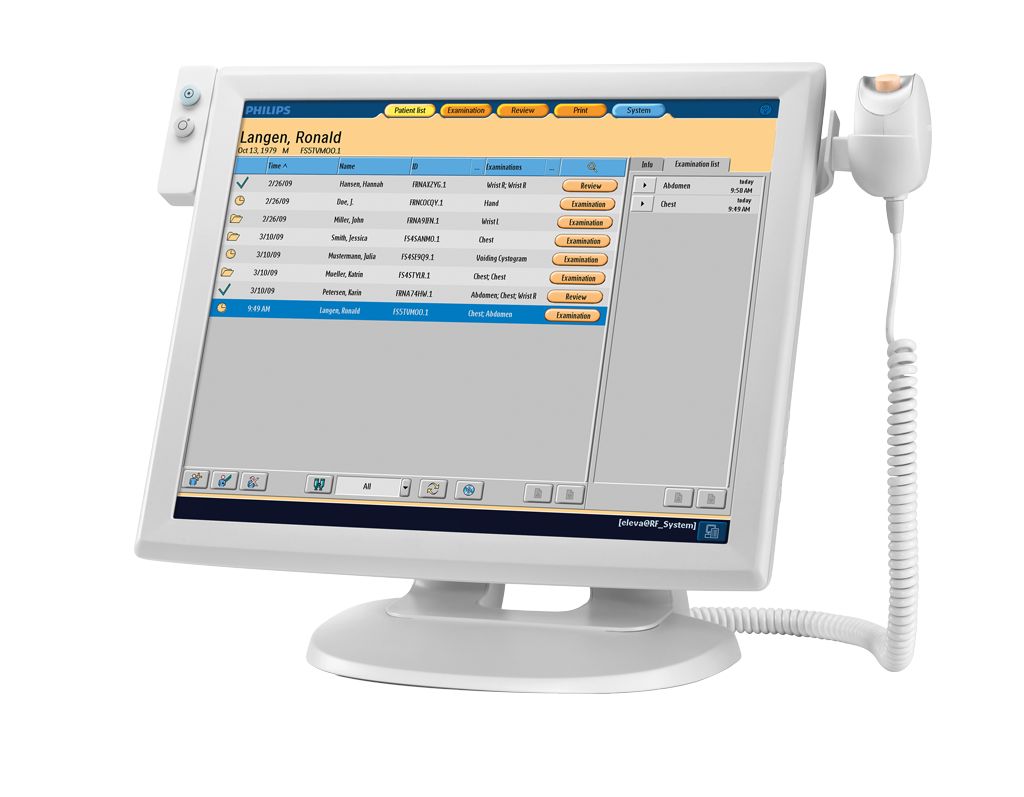

  • Eleva workspot
    Hard disk
    500
    Image storage
    Typically 4,000 images
    Monitor
    19" LCD color touch screen monitor (1280 x 1024)
    UNIQUE image processing
    Yes
    Battery capacity
    4200 mAh
    Matrix depth
    16 bit/pixel


Documentation

Product brochure
