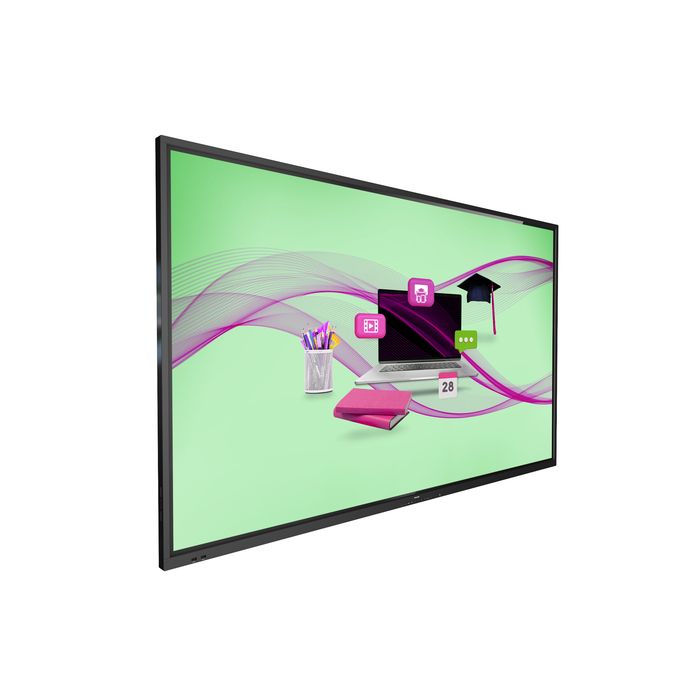

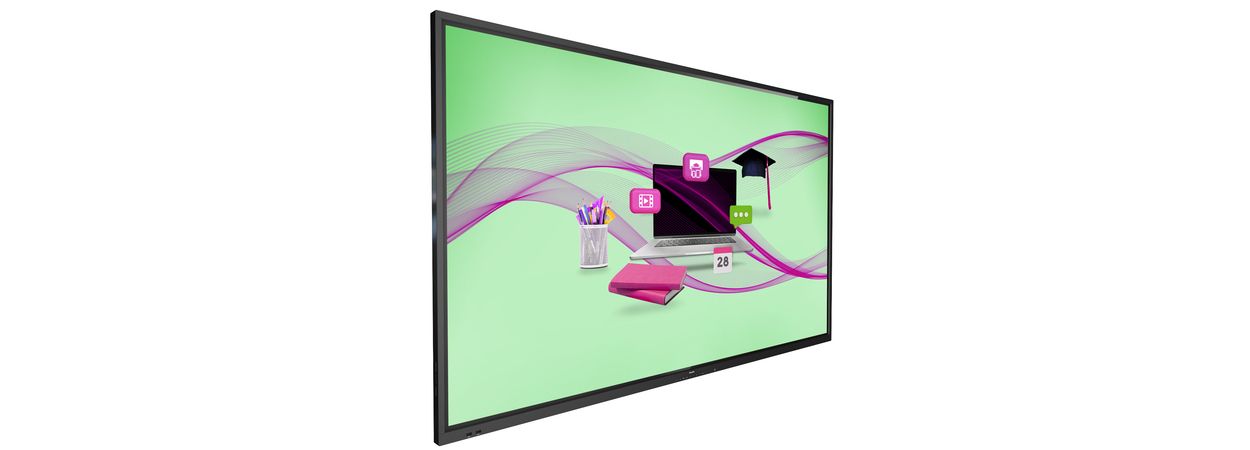

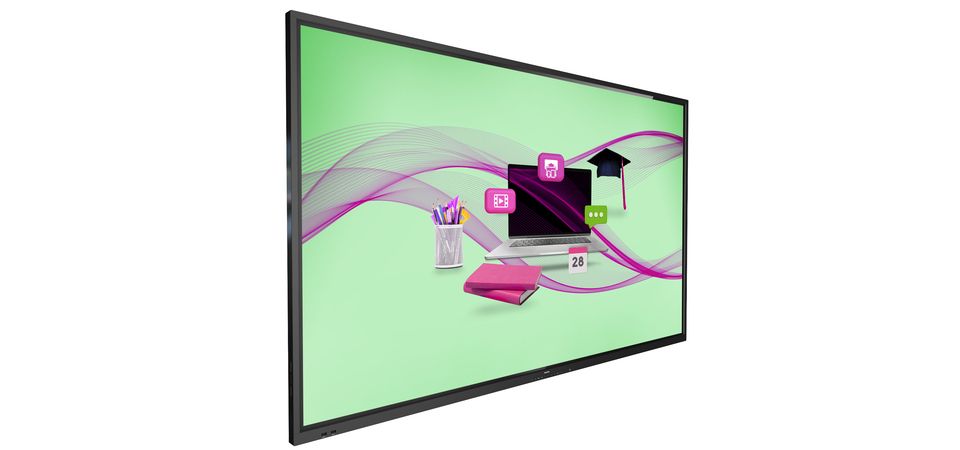

Signage Solutions E-Line Display

86BDL4052E/02

Interactive education display

Inspire collaboration. Maximise engagement. This top-spec Philips E-Line touch display is powered by Android and features enhanced educational software and programs compatibility, 20 touchpoints and a toughened anti-glare glass.

Signage Solutions E-Line Display

Similar products

See all E-Line series

Interactive education display

Featuring multi-touch technology

  • 86"
  • Powered by Android
  • Multi-touch
OPS slot allows for PC embedding without cabling

OPS slot allows for PC embedding without cabling

Integrate a full-power PC or Android-powered CRD50 module directly into your Philips Professional Display. The OPS slot contains all the connections you need to run your slot-in solution, including a power supply.

Multi-touch technology capable of 20 touchpoints

Create a memorable interactive experience with up to 20 touchpoints at the same time. Perfect for collaborative and competitive applications, this display connects your audience with any content - making it ideal for education, public venues, corporate, hospitality and retail settings. The touch panel is HID compliant, providing true plug-and-play operation.

Whiteboard mode built in

Inspire agile collaboration with whiteboard mode. Simply activate this feature to turn your display into a blank canvas that can be drawn on by multiple users by hand or with dedicated display markers. Everything on the screen can then be captured for easy printing or file sharing.

Wireless screen sharing and advanced collaboration

Display four feeds on the one screen. Wireless screen sharing allows you to connect multiple devices at the same time for quick content switching when you need it. Use your existing Wi-Fi network to instantly and securely connect devices or use our optional HDMI interact dongles to cast directly to the screen without needing to connect to your secured/protected network.

Android: Run your own app or choose your favourite app to run

With Android OS integrated into the display, you can work with the most developed OS on the planet and save your own app directly into the display. Or, choose from the large library of Android apps and play content from there. With the built-in scheduler, you can daypart your apps and content based on your customer and time of day and with the auto-orientation feature, showing content in portrait or landscape is as simple as turning the display.

Catch the Wave for revolutionary results

Unlock power, versatility and intelligence inside your Philips E-Line displays remotely with Wave. This evolutionary cloud platform puts you fully in control, with simplified installation and setup, for monitoring and controlling displays, upgrading firmware, managing playlists and setting power schedules. Saves you time and energy, and reduces environmental impact.

Technical Specifications

  • Picture/Display

    Diagonal screen size (metric)
    217.4  cm
    Diagonal screen size (inch)
    85.6  inch
    Aspect ratio
    16:9
    Panel resolution
    3840 x 2160
    Pixel pitch
    0.4935 x 0.4935 mm
    Optimum resolution
    3840 x 2160 @ 60 Hz
    Display colours
    1.07 billion
    Brightness (after glass)
    400  cd/m²
    Brightness (before glass)
    430  cd/m²
    Contrast ratio (typical)
    4000:1
    Dynamic contrast ratio
    500,000:1
    Response time (typical)
    8  ms
    Viewing angle (horizontal)
    178  degree
    Viewing angle (vertical)
    178  degree
    Picture enhancement
    • 3/2 - 2/2 motion pull down
    • 3D Combfilter
    • Motion compens. deinterlacing
    • Progressive scan
    • 3D MA deinterlacing
    • Dynamic contrast enhancement
    Panel technology
    VA
    Operating system
    Android 11
    OS UI resolution
    3840 x 2160 @ 60 Hz
  • Connectivity

    Audio output
    3.5 mm Mini Jack (x 1)
    Video input
    • HDMI 2.0 (x 3)
    • USB 2.0 (x 3)
    • DVI-D (x 1)
    • USB 3.0 (x 3)
    • USB-C (up to 65 W)
    Audio input
    3.5 mm mini jack (x 1)
    Other connections
    • OPS
    • micro SD
    • USB-B (x 3)
    Video output
    HDMI 2.0 (x 1)
    External control
    • IR (in/out) 3.5 mm jack
    • RJ45
    • RS232C (in/out) 2.5 mm jack
  • Convenience

    Placement
    Landscape (18/7)
    Screen-saving functions
    Pixel Shift, Low Brightness
    Keyboard control
    Lockable
    Remote control signal
    Lockable
    Signal loop through
    • RS232
    • IR Loop through
    Ease of installation
    • AC Out
    • Smart Insert
    Other convenience
    Carrying handles
    Network controllable
    • RS232
    • RJ45
  • Sound

    Built-in speakers
    2 x 15 W
  • Power

    Mains power
    100 - 240 V~, 50 - 60 Hz, 7.5 A
    Consumption (Typical)
    450  W
    Consumption (Max)
    670 W
    Standby power consumption
    <0.5 W
    Power Saving Features
    Smart Power
    Energy Label Class
    G
  • Supported Display Resolution

    Computer formats
    • 640 x 350, 70 Hz
    • 640 x 480, 60, 67, 72, 75 Hz
    • 800 x 600, 56, 60, 72, 75 Hz
    • 832 x 624, 75 Hz
    • 848 x 480, 60 Hz
    • 960 x 720, 75 Hz
    • 1024 x 768, 60, 70 Hz
    • 1152 x 864, 60, 70, 75 Hz
    • 1152 x 900, 66 Hz
    • 1280 x 720, 60, 70 Hz
    • 1280 x 768, 60 Hz, 75 Hz
    • 1280 x 800, 60, 75 Hz
    • 1280 x 960, 60 Hz
    • 1280 x 1024, 60, 67, 75 Hz
    • 1360 x 768, 60 Hz
    • 1366 x 768, 60 Hz
    • 1400 x 1050, 60, 75 Hz
    • 1600 x 900, 60 Hz
    • 1600 x 1200, 60 Hz
    • 1680 x 1050, 60 Hz
    • 1920 x 1080, 60 Hz
    • 1920 x 1200, 60 Hz
    • 3840 x 2160, 24, 25, 30, 60 Hz
    • 1440 x 900, 60 Hz
    • 720 x 400, 70 Hz
    Video formats
    • 480p, 60 Hz
    • 1080i, 50, 60 Hz
    • 1080p, 50, 60 Hz
    • 2160p, 50, 60 Hz
    • 480i, 60 Hz
    • 720p, 50, 60 Hz
  • Dimensions

    Smart Insert mount
    100 x 100 mm, 6xM4L6
    Set Width
    1960.8  mm
    Set Height
    1145.7  mm
    Weight
    74.49  kg
    Set Depth
    101.3 mm(D_Max)/79.0 mm(D_Wallmount)  mm
    Set Width (inch)
    77.19  inch
    Set Height (inch)
    45.11  inch
    Wall Mount
    600 x 400 mm, M8
    Set Depth (inch)
    3.98(D_Max)/3.11(D_Wallmount)  inch
    Bezel width
    17.8 mm(T/R/L) x 31.7 mm(B)
  • Weight

    Product with packaging (kg)
    90.6  kg
    Product with packaging (lb)
    199.74  lb
    Product without stand (kg)
    74.49  kg
    Product without stand (lb)
    164.22  lb
  • Operating conditions

    Altitude
    0 ~ 3000 m
    Temperature range (operation)
    0 ~ 40  °C
    MTBF
    50,000  hour(s)
    Temperature range (storage)
    -20 ~ 60  °C
    Humidity range (operation)[RH]
    20–80% (without condensation)
    Humidity range (storage) [RH]
    5–95% (without condensation)
  • Multimedia Applications

    USB Playback Video
    • H.263
    • H.264
    • H.265
    • MPEG1/2
    • MPEG4
    • VP8
    • VP9
    USB Playback Picture
    • BMP
    • JPEG
    • PNG
    USB Playback Audio
    • AAC
    • HEAAC
    • MPEG
  • Internal Player

    CPU
    MTK 9970A
    Memory
    8 GB
    Storage
    32 GB eMMc
    Wi-Fi
    2G/5G/6G 2T2R
  • Accessories

    Included Accessories
    • Cleaning cloth (x 1)
    • HDMI Cable (3 m) (x 1)
    • Remote control and AAA batteries
    • USB A to B cable (3 m) (x 1)
    • AC Power Cord
    • AC Switch Cover
    • Cable clip (x 3)
    • DVI-I Cable (1.8 m) (x 1)
    • IR sensor cable (1.8 m) (x 1)
    • Philips logo (x 1)
    • Quick start guide (x 1)
    • RS232 cable
    • RS232 daisy chain cable (x 1)
    • Touch Pen (x 2)
    • USB cover and screws
    Optional accessories
    Interact dongles
  • Miscellaneous

    On-Screen Display Languages
    • Arabic
    • Dutch
    • Danish
    • English
    • French
    • Finnish
    • German
    • Italian
    • Japanese
    • Norwegian
    • Polish
    • Portuguese
    • Russian
    • Spanish
    • Swedish
    • Simplified Chinese
    • Turkish
    • Traditional Chinese
    Warranty
    5-year warranty
    Regulatory approvals
    • CE
    • FCC, Class A
    • RoHS
    • CB
    • EAC
    • EMF
    • ETL
  • Interactivity

    Multi-touch technology
    0-gap Infrared touch
    Touchpoints
    20 simultaneous touch points
    Plug and play
    HID compliant
    Protection glass
    • Anti-Glare
    • Blue light filter
    • Tempered safety glass 7 MOHS

What's in the box?

Other items in the box

  • Optional accessories: Interact dongles
