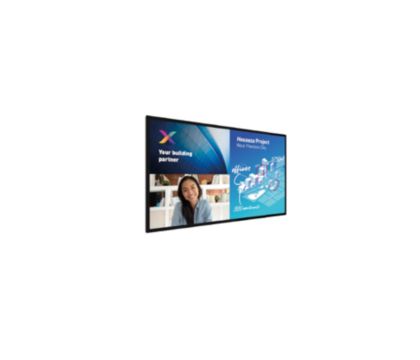

Signage Solutions C-Line Display

65BDL8051C/00

-{discount-value}

Signage Solutions C-Line Display

Name: C-Line Display
Brand: Philips
SKU: 65BDL8051C/00

65BDL8051C/00

Interactive meeting display

Maximise engagement and inspire collaboration with an interactive Philips C-Line display. These Windows-powered displays are made to withstand heavy daily usage and feature up to 10 touchpoints, edge-to-edge glass and a flush design.

This product qualifies for VAT relief

If you're eligible for VAT relief on medical devices, you can claim it on this product. The VAT amount will be deducted from the price shown above. Look for full details in your shopping basket.

Signage Solutions C-Line Display

Interactive meeting display

This product qualifies for VAT relief

If you're eligible for VAT relief on medical devices, you can claim it on this product. The VAT amount will be deducted from the price shown above. Look for full details in your shopping basket.

Signage Solutions C-Line Display

Interactive meeting display

Operate, monitor and maintain with CMND and Control

Run your display network over a local (LAN) connection. CMND and Control allows you to perform vital functions like controlling inputs and monitoring display status. Whether you're in charge of one screen or 100.

Wireless screen sharing and advanced collaboration

Display four feeds on the one screen. Use your existing Wi-Fi network to instantly and securely connect devices or use the two included HDMI dongles to cast directly to the screen without needing to connect to your secured/protected network.

HID Capacitive Touch with USB Plug and Play

Capacitive Touch gives you the cutting edge appearance of edge to edge glass with a bezel width of just 1.5 mm! Create a memorable interactive experience with up to 10 touchpoints at the same time. Perfect for collaborative and competitive applications, this display connects your audience with any content — making it ideal for education, public venues, corporate, hospitality and retail settings.

Powered by Windows 10

Powerful Core i7 processor with nVidia GPU. Runs all of your favourite apps like Zoom, Skype (included) and MS Teams, MS Office (not included)

Whiteboard mode built in

Inspire agile collaboration with whiteboard mode. Simply activate this feature to turn your display into a blank canvas that can be drawn on by multiple users by hand or with dedicated display markers. Everything on the screen can then be captured for easy printing or file sharing.

Fast and easy video conferencing

Ready to use video conferencing software makes one-to-one or group video calls easier than ever. Simply use your own camera or add the optional Logitech Meetup bundle for an all-in-one ConferenceCam solution.

Crestron Connected certified

Integrate this Philips Professional Display to your Crestron network for full remote control via your laptop, desktop or mobile device. Switch the display on and off, schedule content, manage settings and easily connect external devices. Crestron Connected® provides a fast, reliable and secure enterprise level solution for system control.

Technical Specifications

Picture/Display
Diagonal screen size (inch)

64.5 inch

Diagonal screen size (metric)

163.83 cm

Panel resolution

3840 x 2160

Optimum resolution

3840 x 2160 @ 60 Hz

Brightness

350 cd/m²

Contrast ratio (typical)

1300:1

Dynamic contrast ratio

500,000:1

Aspect ratio

16:9

Response time (typical)

9 ms

Pixel pitch

0.372 (H) x 0.372 (V) mm

Display colours

1.07 billion

Viewing angle (horizontal)

178 degree

Viewing angle (vertical)

178 degree

Picture enhancement
- 3/2 - 2/2 motion pull down
- Motion compens. deinterlacing
- 3D MA deinterlacing
- Dynamic contrast enhancement
- Progressive scan
Operating system

Windows 10
Connectivity
Video input
- Display Port1.2 (x 1)
- DVI-I (x 1)
- HDMI 2.0 (x 4)
- USB-C
- USB 2.0 (x 2)
- USB 3.0 (x 2)
Video output
- DisplayPort 1.2 (x 1)
- DVI - D (x 1)
- HDMI 2.0 (x 2)
Audio input

3.5 mm jack

Audio output

3.5 mm Jack (x 2)

Other connections
- OPS
- micro SD
External control
- RJ45
- RS232C (in/out) 2.5 mm jack
- IR (in/out) 3.5 mm jack
Supported Display Resolution
Computer formats
- 1920 x 1200, 60 Hz
- 1920 x 1080, 60 Hz
- 1680 x 1050, 60 Hz
- 1600 x 1200, 60 Hz
- 1600 x 900, 60 Hz
- 1440 x 1050, 60 Hz
- 1440 x 900, 60, 75 Hz
- 1400 x 1050, 60, 75 Hz
- 1366 x 768, 60 Hz
- 1360 x 768, 60 Hz
- 1280 x 1024, 60, 67, 75 Hz
- 1280 x 960, 60 Hz
- 1280 x 800, 60, 75 Hz
- 1280 x 768, 60 Hz, 75 Hz
- 1280 x 720, 60, 70 Hz
- 1152 x 900, 66 Hz
- 1152 x 864, 60, 70, 75 Hz
- 1024 x 768, 60, 70 Hz
- 960 x 720, 75 Hz
- 848 x 480, 60 Hz
- 832 x 624, 75 Hz
- 800 x 600, 56, 60, 72, 75 Hz
- 720 x 400, 70 Hz
- 640 x 480, 60, 67, 72, 75 Hz
- 640 x 350, 70 Hz
Video formats
- 1080p, 50, 60 Hz
- 576p, 50 Hz
- 480p, 60 Hz
- 1080i, 50, 60 Hz
- 4K x 2K, 50, 60 Hz
- 720p, 50, 60 Hz
UHD Formats
- 3840 x 2160, 24, 25, 30, 60 Hz
- 3840 x 2160, 50 Hz
Dimensions

Set Width

1485.1 mm

Set Height

860.10 mm

Set Depth

86.2 mm (D@wall mount)/97.4 mm (D@speaker Cover) mm

Set Width (inch)

58.47 inch

Set Height (inch)

33.86 inch

Set Depth (inch)

3.39 (D@wall mount)/3.83 (D@speaker Cover) inch

Bezel width

1.50 mm(even)

Product weight (lb)

104.34 lb

Product weight

47.33 kg

Wall Mount

400 (H) x 400 (V) mm, M8

Smart Insert mount

6*M4*L6 (100 mm x 100 mm)
Convenience
Placement
- Landscape
- Landscape (18/7)
Keyboard control
- Hidden
- Lockable
Signal loop through
- RS232
- IR Loop through
Network controllable
- RJ45
- RS232
Energy-saving functions

Smart Power

Screen-saving functions

Pixel Shift, Low Bright

Ease of installation

Smart Insert

DPMS power saving system

Yes
Power

Standby power consumption

<0.5 W

Mains power

100 ~ 240 VAC, 50 ~ 60 Hz

Consumption (Typical)

190 W

Consumption (Max)

320 W

Energy Label Class

G
Operating conditions

Temperature range (operation)

0 ~ 40 °C

Temperature range (storage)

-20 ~ 60 °C

Relative humidity

20~80% (operating), 5~95% (storage) %

Altitude

0 ~ 3000 m

MTBF

50,000 hour(s)
Sound

Built-in speakers

2 x 20 W RMS
Accessories
Included Accessories
- Philips logo (x 1)
- RS232 Daisy chain cable (x 1)
- Cleaning cloth (x 1)
- DVI-I Cable (1.8 m) (x 1)
- HDMI Cable (3 m) (x 1)
- HDMI transmitter (x 1)
- IR sensor cable (1.8 m) (x 1)
- M2 Screw (x 2)
- M3 screw (x 2)
- Power cable (x 3)
- Touch Pen (x 2)
- USB A to B cable (3 m) (x 1)
- USB Cover (x 1)
- AAA batteries (x 1)
- Quick start guide (x 1)
- Remote control (x 1)
- RS232 cable (3 m) (x 1)
Multimedia Applications
USB Playback Audio
- AAC
- M4A
- MP3
- WMA
USB Playback Picture
- BMP
- JPEG
- JPG
- PNG
USB Playback Video
- ASF
- AVI
- FLV
- MKV
- MP4
- MPEG
- MPG
- TS
- VOB
- WEBM
- WMV
- DAT
Miscellaneous
On-Screen Display Languages
- English
- French
- German
- Spanish
- Polish
- Turkish
- Russian
- Italian
- Simplified Chinese
- Traditional Chinese
- Arabic
- Japanese
- Danish
- Dutch
- Finnish
- Norwegian
- Portuguese
- Swedish
Regulatory approvals
- CE
- RoHS
- CB
- CU
- EMF
- FCC, Class A
- ETL
- PSB
Warranty

3 year warranty
Internal Player

CPU

Intel Core i7

Storage

256 GB eMMc

GPU

Nvidia GT730

RAM

8 GB DDR4
Multi-touch Interactivity

Touch points

10 simultaneous touch points
