Core M2
Vascular system









Core M2

Vascular system
The Core M2 is an easy-to-use, small footprint, digital IVUS imaging system, designed for peripheral vascular procedures and operable directly from the sterile field.

Features

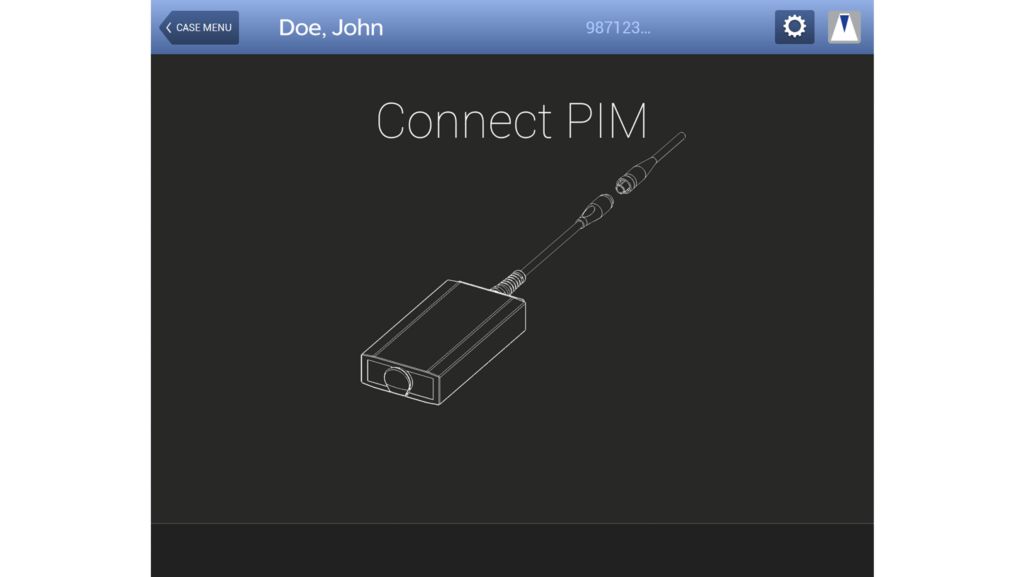

Intuitive user interface
The Core M2 system features an intuitive interface for optimal ease of use as well as guided workflows and uniform controls to simplify staff training.
Intuitive user interface
Sterile field control
The Core M2 system features a large touch screen for sterile field control, with the ability to drive from the sterile field. Only Philips offers the plug-and-play simplicity of digital IVUS and touchscreen control from the sterile field to get to your information faster.
Sterile field control

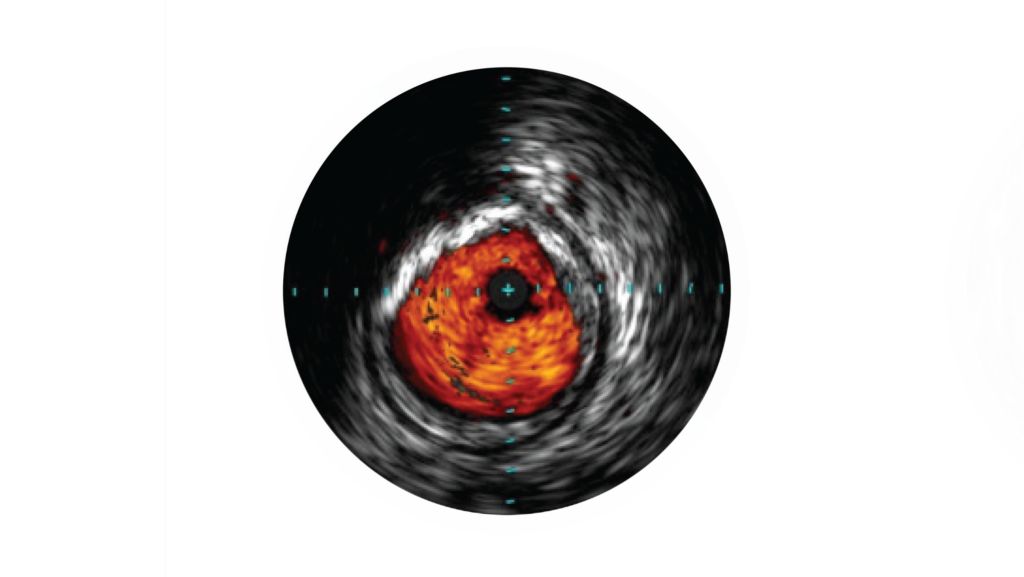

IVUS helps with disease assessment
IVUS imaging helps physicians assess disease markers including plaque burden percentage, lesion location and morphology, calcium volume, and the presence of thrombus. It also enables analysis of crucial parameters – like luminal cross-sectional measurements – and helps aid in disease diagnosis.
IVUS helps with disease assessment


Specifications
  • Power requirements
    System input
    100-240VAC +50/50Hz, 200W
    Workstation
    100-240VAC +50/50Hz, 200W
  • Dimensions
    Panel PC
    H=15.75", W=18", D=3.13"
    Core M2 cart
    H=58.75", W=26.25", D=26"
  • Ordering information
    Core M2 vascular system
    400-0100.17
    SA PIM
    802143001-ROHS
    Cart
    400-0100.18
    Snap Kovers, 28” x 20 (optional)
    01-2820 (send orders to orders@advmeddes.com)

Documentation

Core M2 IVUS workflow postcard
PDF|782.89 KB

Related products

  • Visions PV .035 Digital IVUS catheter
    As an adjunct to conventional angiographic interventions, the Visions PV .035 digital IVUS catheter evaluates vascular morphology in blood vessels and provides cross-sectional imaging of these vessels. With a 90 cm length and 60 mm max imaging diameter for 0.035” guide wire interventional procedures, the device aids in peripheral artery disease diagnosis and venous disease and guides clinicians toward the correct therapy for the patient’s unique needs.
  • Visions PV .018  Digital IVUS catheter
    As an adjunct to conventional angiographic interventions, the Visions PV .018 digital IVUS catheter evaluates vascular morphology in blood vessels and provides cross-sectional imaging of these vessels. With a 135 cm working length and 24 mm max imaging diameter for 0.018” guide wire interventional procedures, the device aids in peripheral artery disease diagnosis and guides clinicians toward the correct therapy for the patient’s unique needs.
  • Core Precision guided therapy system
    The Core precision guided therapy systems offer the choice of imaging and physiology on a single integrated platform.¹ Core helps provide clarity in your approach, confidence in your decisions, and convenience in your diagnostic and interventional workflows.
  • Core Mobile Precision guided therapy system
    Core Mobile is designed to power the future of precision guided therapy and offers the choice of imaging and physiology on a single mobile platform.¹ Core Mobile also provides clarity in your approach and confidence in your results by offering additional information during the diagnostic phase, assisting in intervention decisions.
