Eagle Eye Platinum ST
Digital IVUS short tip catheter
Eagle Eye Platinum ST
Digital IVUS short tip catheter
The Eagle Eye Platinum ST digital IVUS catheter offers a 2.5 mm tip-to-imaging distance designed to assess more of the vessel than standard catheters by providing a closer visualization of highly stenosed lesions and distal anatomy. The short tip catheter fits through all 5F guides and has all features of our top-selling Eagle Eye Platinum model, including plug-and-play simplicity, three radiopaque markers, GlyDx hydrophilic coating, and SyncVision compatibility.*
Clinical image gallery
- Multi-modality imaging
Features
Improved deliverability in tortuosity
The Eagle Eye Platinum ST catheter offers improved deliverability through tortuosity, compared to the Eagle Eye Platinum catheter in a tortuous benchtop model.*
Plug-and-play for immediate imaging
The plug-and-play simplicity and digital, solid state design of the Eagle Eye Platinum ST digital IVUS catheter provides a fast, easy approach for IVUS imaging. There is no motor drive, no moving parts, and no pullback device required. Additionally, you don’t have to worry about flushing or priming of the transducer before a procedure.

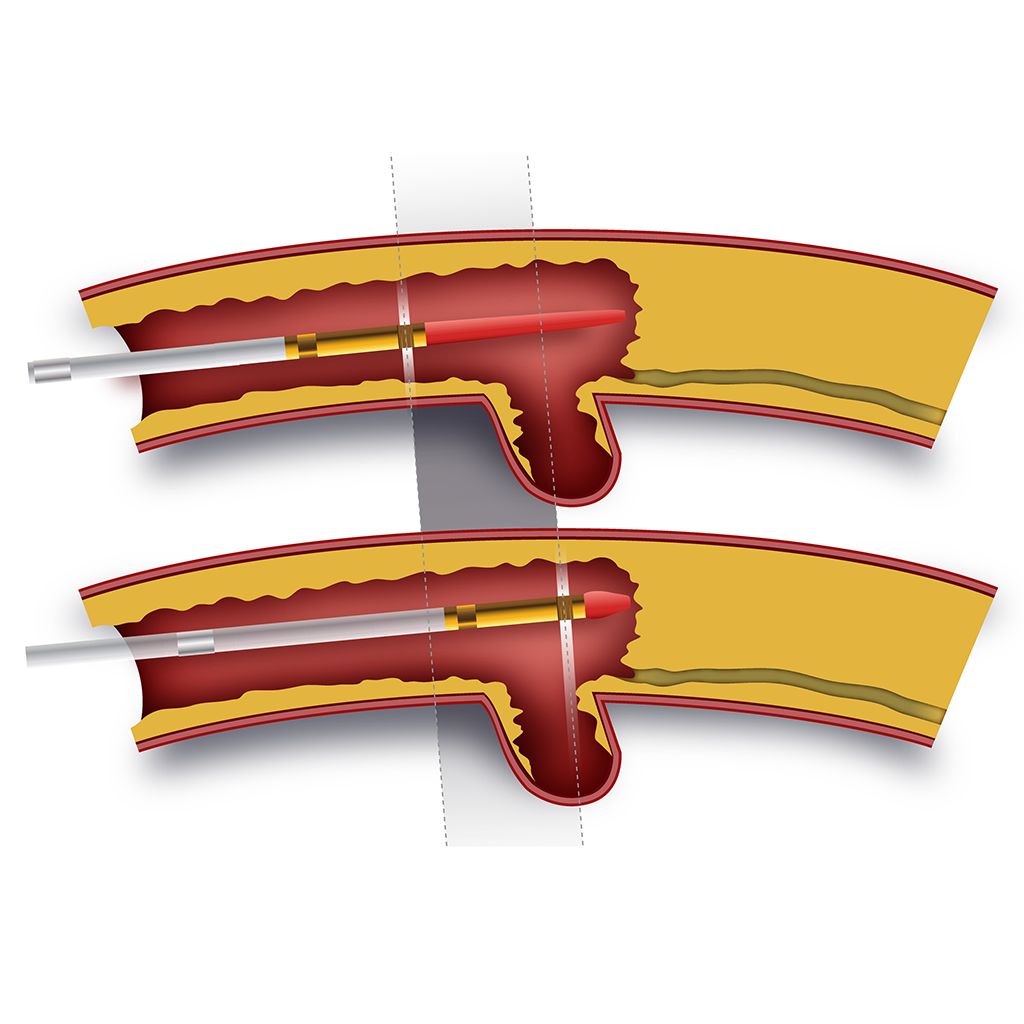

Closer visualization
A shorter-tip design allows for further advancement of the transducer in a highly stenosed or distal vessel, allowing you to image more distally. Like the Eagle Eye Platinum catheter, the device has both coronary and peripheral indications.
Specifications
- Catheter size specs
- Minimum guide catheter
- 5F (I.D. 0.056")
- Maximum guide wire
- 0.014"
- Maximum imaging diameter
- 20 mm
- Working length
- 150 cm
- Frequency
- 20 MHz
Related products
- The SyncVision precision guidance system streamlines lesion assessment, simplifies vessel sizing, and enables precise therapy delivery in conjunction with the existing fluoroscopic image stream.
- The Eagle Eye Platinum digital IVUS catheter is the #1 choice of physicians for intravascular imaging (in the US).* As a unique plug-and-play intravascular imaging catheter it is designed for ease of use and deliverability. Features include a soft tapered tip, GlyDx hydrophilic coating for increased lubricity, a long, rapid exchange lumen for improved pushability, three radiopaque markers, and compatibility with SyncVision for co-registration with angiography.
- The Core precision guided therapy systems offer the choice of imaging and physiology on a single integrated platform.¹ Core helps provide clarity in your approach, confidence in your decisions, and convenience in your diagnostic and interventional workflows.
- Core Mobile is designed to power the future of precision guided therapy and offers the choice of imaging and physiology on a single mobile platform.¹ Core Mobile also provides clarity in your approach and confidence in your results by offering additional information during the diagnostic phase, assisting in intervention decisions.
Disclaimer
1. Safety and efficacy of VH IVUS for use in the characterization of vascular lesions and tissue types has not been established.
2. Nair A, Margolis M, Kuban B, Vince D. Automated Coronary Plaque Characterisation with Intravascular Ultrasound Backscatter: Ex Vivo Validation. EuroIntervention. 2007; 3: 113-120
*Data on file
