InnoSight
Compact ultrasound system
InnoSight
Compact ultrasound system
Philips InnoSight ultrasound system allows you to scan patients in more of the clinical places you deliver care. The compact & highly portable InnoSight ultrasound system, with its innovative ergonomic design and clinical versatility, allows you to bring ultrasound to patients, whether in the office, clinic, or hospital.
High quality imaging
Enhanced mobility
Simplicity - Intuitive user interface
Clinical image gallery
- Innosight clinical image liver vasculature
- Innosight clinical image adnexal vascularity
- Innosight clinical image fetal abdomen
- Innosight clinical image breast
- Innosight clinical image abdominal aorta
- Innosight clinical image renal arcuate vessels
- Innosight clinical image fetal heart
Features
Intuitive user interface
An intuitive user interface and streamlined workflow make InnoSight easy to use while reducing the learning curve. The customizable workflow and programmable keys provide a personalized experience.
Enhanced moblity
At only 2.5 kg, the lightweight, ergonomically designed InnoSight tablet offers enhanced mobility. Wth a battery back up that lasts appoximately 1.5 hours, instantaneous "on", and advanced connectivity features, InnoSight allows unhindered mobility.
A flexible system
With InnoSight, you can configure the system according to your needs and preferences. Customize preferred behaviors for imaging, workflow, connectivity, measurements, and more.
Specifications
- Physical Dimensions - InnoSight tablet
- Weight
- 2.46 kg
- Length
- 31.9 cm
- Width
- 8,79 inches
- Height
- 3.2 cm
- HD Display
- 29.4 cm
- Transducers
- Curved array C6-2
- 128 elements
- Linear array L12-4
- 128 elements
- Trans Vaginal C9-4v
- 128 elements
- Sector array S4-2
- 64 elements
- InnoSight Mobility Cart
- Weight
- 27.7 kg
- Width
- 48.6 cm
- Depth
- 56.6 cm
- Adjustable Height
- 118.6 cm to 148.6 cm
Recommended products

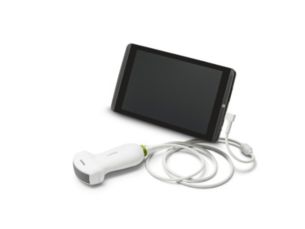

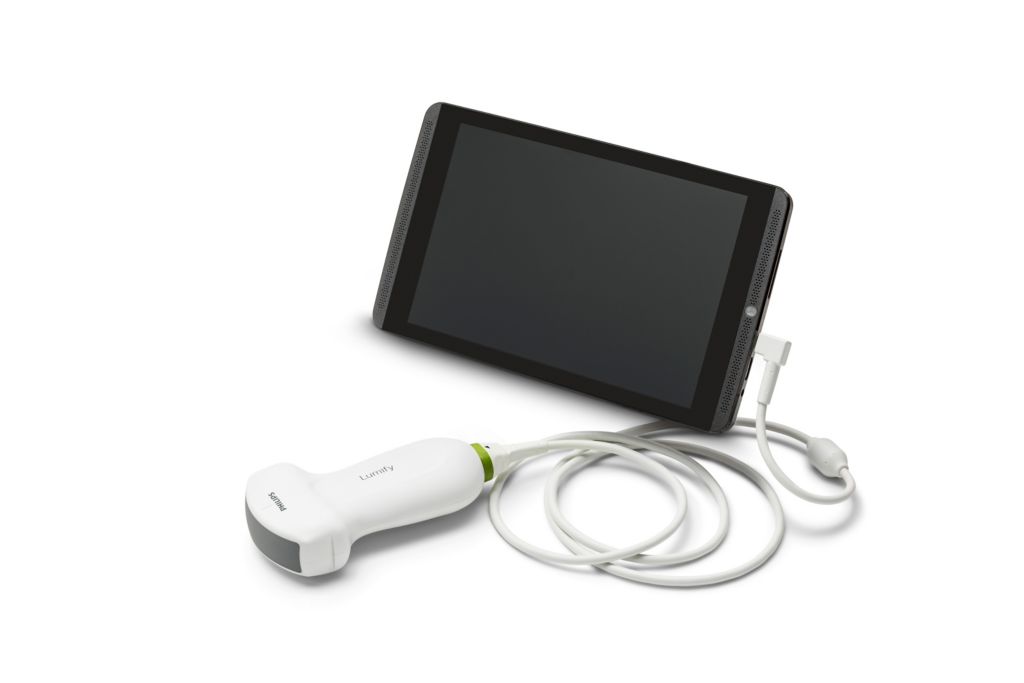

- Exceptional ultrasound from your smart device
- Choosing a new ultrasound system is all about balance. You need accurate diagnostic information quickly, a simplified yet intuitive user interface, and easy access to critical features, along with an ergonomic design and the latest technology.
Disclaimer
All features and transducers for InnoSight may not be available in all countries. Subject to regulatory approvals.
