Brilliance

LCD monitor with Clinical D-image

C240P4QPYEW/00

Brilliance LCD monitor with Clinical D-image

C240P4QPYEW/00

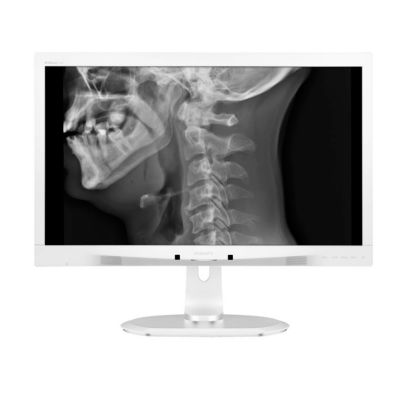

Clinical Review Display

This Philips display is ideal for everyday clinical care environments. Its D-image preset gives you consistent DICOM greyscale medical images. Its medical grade power supply ensures basic safety. See all benefits

Unfortunately this product is no longer available

Brilliance LCD monitor with Clinical D-image

Clinical Review Display

This Philips display is ideal for everyday clinical care environments. Its D-image preset gives you consistent DICOM greyscale medical images. Its medical grade power supply ensures basic safety. See all benefits

Similar products

See all Office monitors

Clinical Review Display

with Brilliant Images

  • Clinical review display
  • 24.1" (61 cm)
  • 1920 x 1200 (2 MP)
Clinical D-image pre-set for DICOM part 14 Greyscale images

Clinical D-image pre-set for DICOM part 14 Greyscale images

Monitors must show medical images consistently with high quality to achieve reliable interpretations. The rendering of medical Greyscale images on standard monitors is mostly inconsistent at best, making them unsuitable for use in a clinical environment. Philips clinical review displays with clinical D-image pre-set are factory-calibrated to give DICOM part 14 compatible Greyscale standard display performance. By using high-quality LCD panels with LED technology, Philips offers you consistent and reliable performance at an affordable price. Further info on http://medical.nema.org/

IPS technology for full colours and wide viewing angles

IPS technology for full colours and wide viewing angles

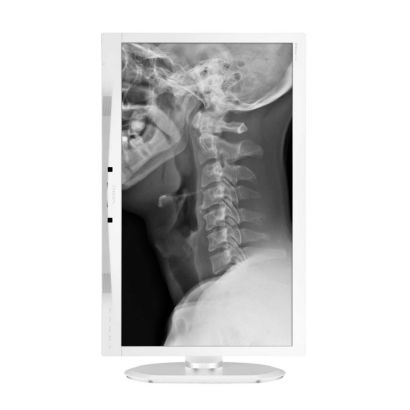

IPS displays use advanced technology that gives you extra-wide viewing angles of 178/178 degrees, making it possible to view the display from almost any angle — even in 90-degree Pivot mode! Unlike standard TN panels, IPS displays gives you remarkably crisp images with vivid colours, making it ideal not only for Photos, films and web browsing, but also for professional applications that demand colour accuracy and consistent brightness at all times.

PowerSensor saves up to 80% energy costs

PowerSensor saves up to 80% energy costs

PowerSensor is a built-in 'people sensor' that transmits and receives harmless infrared signals to determine if the user is present and then automatically reduces monitor brightness when then user steps away from the desk, cutting energy costs by up to 80 percent and prolonging monitor life

SmartErgoBase enables user-friendly ergonomic adjustments

SmartErgoBase enables user-friendly ergonomic adjustments

The SmartErgoBase is a monitor base that delivers ergonomic display comfort and provides cable management. The base can swivel, tilt and rotate to various angles to ensure maximum comfort. The height-adjustable stand guarantees the optimal viewing level, reducing the physical strains of a long workday, while cable management reduces cable clutter and keeps the workspace neat and professional.

Built-in stereo speakers for multimedia

Built-in stereo speakers for multimedia

A pair of high-quality stereo speakers built into a display device. They may be visible front firing, or invisible down firing, top firing, rear firing etc. depending on model and design.

Low bezel-to-table height for maximum reading comfort

Low bezel-to-table height for maximum reading comfort

Thanks to its advanced SmartErgoBase, the Philips monitor can be lowered down almost to desk level for a comfortable viewing angle. Low bezel-to-table height is the perfect solution if you use bifocals, trifocals or progressive lens glasses for your computing work. Additionally, it allows users of different heights to use the monitor at their preferred angle and height settings, helping them to reduce fatigue and strain.

SmartImage Clinic for common display settings

SmartImage is an exclusive, leading-edge Philips technology that analyses the content displayed on your screen, and based on different applications/images displayed on a monitor, SmartImage optimises display content by dynamically adjusting brightness, contrast, colour and sharpness in real time.

Medical-grade power supply ensures safety with low emission

Basic safety, essential performance and reliability are essential requirements in a professional clinical environment. Unlike standard displays, Philips clinical review displays employ special medical-grade power supplies in order to meet these requirements. It complies with the EN/IEC 60601-1 standard ensuring basic safety and essential performance. It also complies with the EN/IEC 60601-1-2 collateral standard for medical-grade electromagnetic tests and compatibility. Many countries, hospitals and clinics mandate compliance to these standards as a requirement.

DisplayPort offers audio and video over a single, long cable

DisplayPort is a digital link from PC to monitor without any conversion. With higher capabilities than DVI standard, it is fully capable to support up to 15 metre cables and 10.8 Gbps/sec data transfer. With this high performance and zero latency, you get the fastest imaging and refresh rates — making DisplayPort the best choice for not only general office or home use, but also for the more demanding gaming and films, video editing and more. It also keeps interoperability in mind via the use of various adapters.

USB Hub with four ports for easy connections

USB Hub allows user to conveniently connect their plug and play multimedia devices such as USB memory devices, camera, portable HDD, Web camera, PDA, Printer and many other devices which have USB connection available. The conveniently located USB 2.0 Hub on the monitor allows USB 2.0 signals to pass through to the computer. Note that many devices like cameras and HDD may need to be powered On independently, as they have higher power requirements than the monitor USB Hub can provide.

Technical Specifications

  • Connectivity

    Signal Input
    • DisplayPort 1.2
    • DVI-D (digital, HDCP)
    • VGA (Analogue)
    USB
    USB 2.0 x 4
    Sync Input
    • Sync on Green
    • Separate Sync
    Audio (In/Out)
    • PC audio-in
    • Headphone out
    Built-in speakers
    2 W x 2
  • Picture/Display

    Panel Size
    24 inch/61 cm
    Aspect ratio
    16:10
    LCD panel type
    IPS technology
    Backlight type
    W-LED system
    Pixel pitch
    0.270 x 0.270 mm
    Optimum resolution
    1920 x 1200 @ 60 Hz
    Brightness
    300  cd/m²
    DICOM calibrated brightness
    265  cd/m²
    Display colours
    16.7 M
    Contrast ratio (typical)
    1000:1
    Response time (typical)
    14  ms
    Viewing angle
    • 178º (H)/178º (V)
    • @ C/R > 10
    Picture enhancement
    SmartImage Clinic
    Effective viewing area
    518.4 (H) x 324 (V)
    Scanning Frequency
    24–94 kHz (H)/48–85 Hz (V)
    sRGB
    Yes
    DICOM
    • Clinical D-image
    • DICOM part-14
  • Convenience

    Plug and Play Compatibility
    • DDC/CI
    • Mac OS X
    • sRGB
    • Windows 8.1 / 8 / 7
    User convenience
    • SmartImage Clinic
    • PowerSensor
    • Menu
    • Power On/Off
    • 4:3/Wide
    OSD Languages
    • English
    • French
    • German
    • Italian
    • Portuguese
    • Russian
    • Simplified Chinese
    • Spanish
    • Brazil Portuguese
    • Czech
    • Dutch
    • Finnish
    • Greek
    • Hungarian
    • Japanese
    • Korean
    • Polish
    • Swedish
    • Traditional Chinese
    • Turkish
    • Ukrainian
    Other convenience
    • Kensington lock
    • VESA mount (100 x 100 mm)
    Control software
    SmartControl
  • Stand

    Height adjustment
    130  mm
    Pivot
    90 degree
    Swivel
    -65/65  degree
    Tilt
    -5/20  degree
  • Power

    Off mode
    Zero watts with Zero switch
    On mode
    31.4 W (typ.)
    Standby mode
    0.5 W (typ.)
    Power LED indicator
    • Operation - White
    • Standby mode - White (flashing)
    External power supply
    100-240VAC, 50-60 Hz (Medical cert.: IEC60601-1/EN60601-1)
  • Dimensions

    Packaging in mm (W x H x D)
    632 x 457 x 286  mm
    Product without stand (mm)
    555 x 388 x 65  mm
    Product with stand (max height)
    555 x 550 x 244  mm
  • Weight

    Product with packaging (kg)
    9.80  kg
    Product with stand (kg)
    6.97  kg
    Product without stand (kg)
    4.64  kg
  • Operating conditions

    Altitude
    Operation: +12,000 ft (3658 m), Non-operation: +40,000 ft (12,192 m)
    Temperature range (operation)
    0°C to 40°C  °C
    MTBF
    30,000  hour(s)
    Relative humidity
    20–80%  %
    Temperature range (storage)
    -20°C to 60°C  °C
  • Sustainability

    Environmental and energy
    • PowerSensor
    • RoHS
    • WEEE
    Recyclable packaging material
    100  %
    Specific Substances
    • PVC/BFR free housing
    • Mercury free
  • Compliance and standards

    EMC
    • IEC/EN60601-1-2
    • CE Mark
    Ergonomic/Others
    • JIS Z2801
    • TUV/GS
    • TUV Ergo
    • ISO 13485 certified
    • CCC
    • CECP
    • RCM
    • UL/cUL
    • TCO certified
    Safety
    • IEC/EN60601-1
    • CE Mark
  • Cabinet

    Finish
    Texture
    Foot
    White
    Front bezel
    White
    Rear cover
    White

Suggested products

Recently viewed products

  • Please note: This display is not certified to be used in patient vicinity. Any use for primary diagnostics is the sole responsibility of the hospital or clinic operator only.
  • DICOM is the registered trademark of the NEMA for its standards publications relating to digital communications of medical information.
  • "IPS" word mark / trademark and related patents on technologies belong to their respective owners.
